2801-KBVH010-400-G24DC | 1 1/2" N.C. For Fuel Oil Pilot Operated FKM 0.5 - 10 Bar G24V DC 17 W
Log in to see prices here

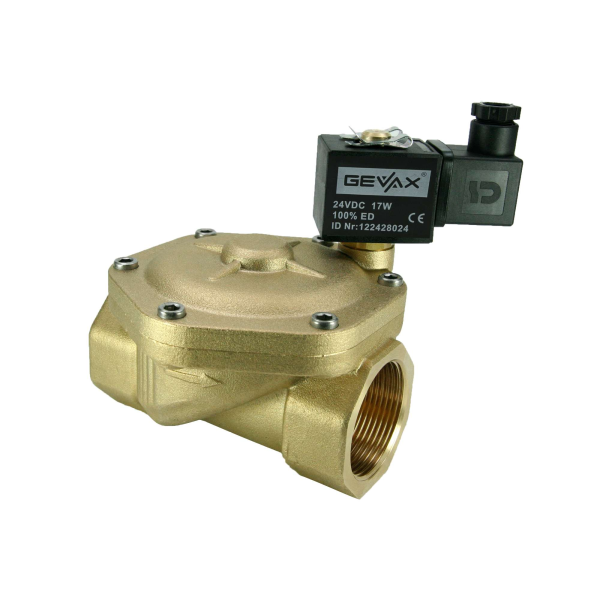

1 1/2" Solenoid Valve N.C. For Fuel Oil Pilot Operated FKM 0.5 - 10 Bar G24V DC 17 W
The prominent features of the brass body normally closed fuel solenoid valve you are reviewing: Seal element suitable for fuel. Liquid Fuel, Chemical, LPG & LNG Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Renewable Energy, Recycling
Product information
- Product code 2801-KBVH010-400-G24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/8" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | -1 |
| Orifice Size (mm) | 40 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | GEVAX |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 390 l/min |
| Tracking Number | 01FU |
| Coil Type | TP4 |
| Product Weight (kg.) | 2,765 |
