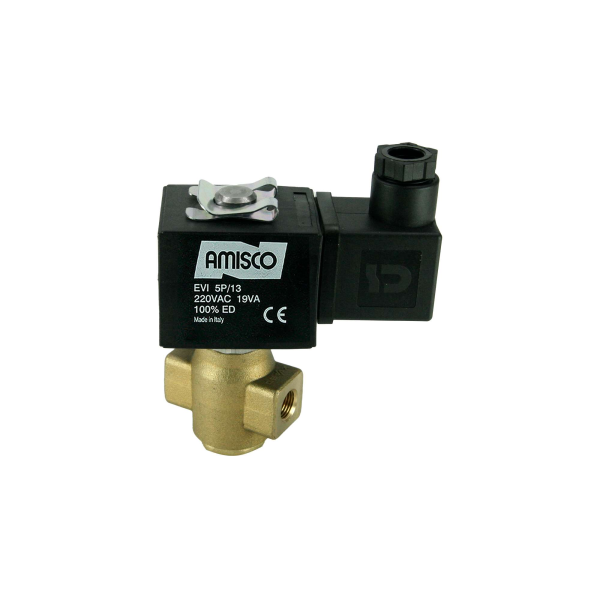

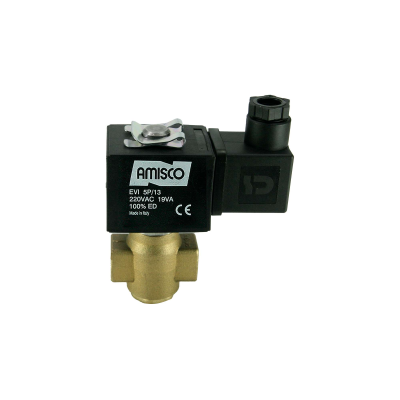

2901-ADRA030-030-220AC | 1/8' N.O. For Fuel Oil Direct Acting RUBY 0-30 Bar 220VAC 19VA
Log in to see prices here
1/8" Solenoid Valve N.O. For Fuel Oil Direct Acting RUBY 0 - 30 Bar 220V AC 19 VA
The prominent features of the brass body normally opened fuel solenoid valve you are reviewing: Seal element suitable for fuel. Liquid Fuel, Chemical, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure, High Differential Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Renewable Energy, Recycling
Product information
- Product code 2901-ADRA030-030-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Fuel Valves |
|---|---|
| Connection Size | 1/8" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | RUBY |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 30 |
| Orifice Size (mm) | 3 |
| Temperature (°C) | -10°C +160°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 3.5 l/min |
| Tracking Number | 70FA |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.425 |
