2901-KDRB006-025-110AC | 1/4' N.C. For Fuel Oil Direct Acting RUBY 0-6 Bar 110VAC 13VA
Log in to see prices here

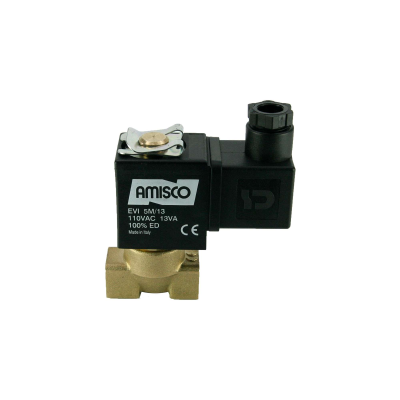

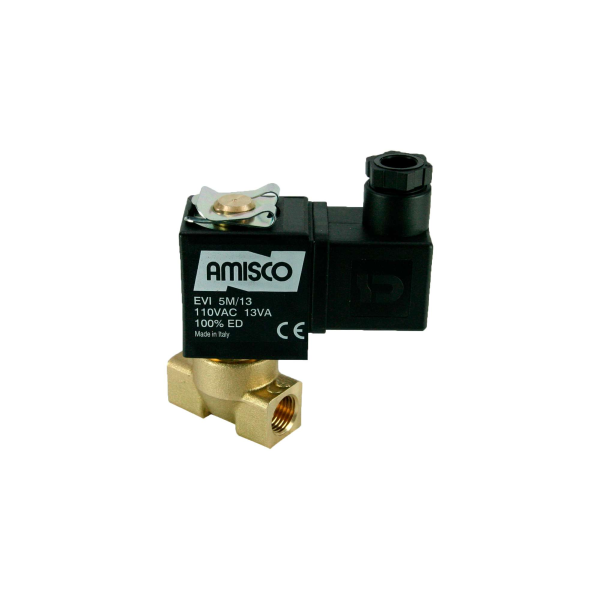

1/4" Solenoid Valve N.C. For Fuel Oil Direct Acting RUBY 0 - 6 Bar 110V AC 13 VA
The prominent features of the brass body normally closed fuel solenoid valve you are reviewing: Seal element suitable for fuel. Liquid Fuel, Chemical, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Renewable Energy, Recycling
Product information
- Product code 2901-KDRB006-025-110AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Fuel Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | RUBY |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 6 |
| Orifice Size (mm) | 2.5 |
| Temperature (°C) | -10°C +160°C |
| Coil Brand | Amisco |
| Coil Voltage | 110V AC |
| Coil Power | 13 VA |
| Body Material | Brass |
| KV Value | 2.85 l/min |
| Tracking Number | 04FC |
| Coil Type | TP1 |
| Product Weight (kg.) | 0.31 |
