3901-ADNF0P5-250-G220AC | 1" N.O. Aluminum Manual Reset N.Gas Direct Acting NBR 0 - 500 m Bar G220V AC 19 VA
Log in to see prices here

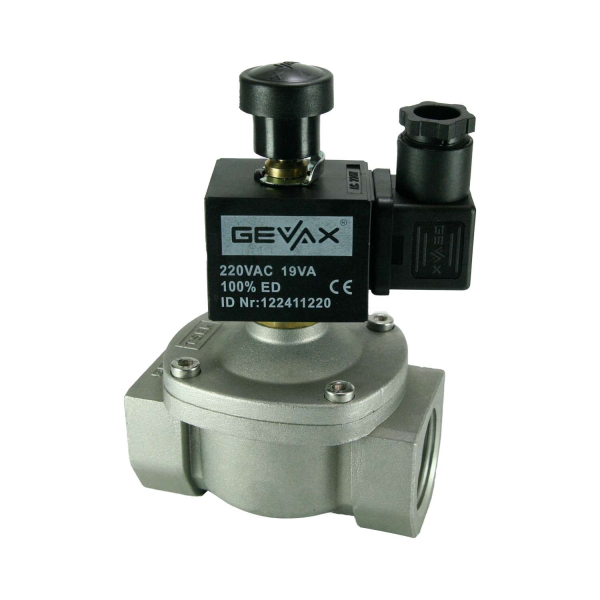

1" Solenoid Valve N.O. Aluminum Manual Reset N.Gas Direct Acting NBR 0 - 500 mBar G220V AC 19 VA
Product information
- Product code 3901-ADNF0P5-250-G220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Gas Valves |
|---|---|
| Connection Size | 1" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 50 |
| Orifice Size (mm) | 25 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | GEVAX |
| Coil Voltage | 24V AC |
| Coil Power | 10 W |
| Body Material | Aluminum |
| KV Value | 20 m³/h |
| Tracking Number | 70GP |
| Coil Type | TP1 |
| Product Weight (kg.) | 0,605 |
