3901-ADNG0P5-320-G220AC | 1 1/4" N.O. Aluminum Manual Reset N.Gas Direct Acting NBR 0 - 500 mBar
Log in to see prices here

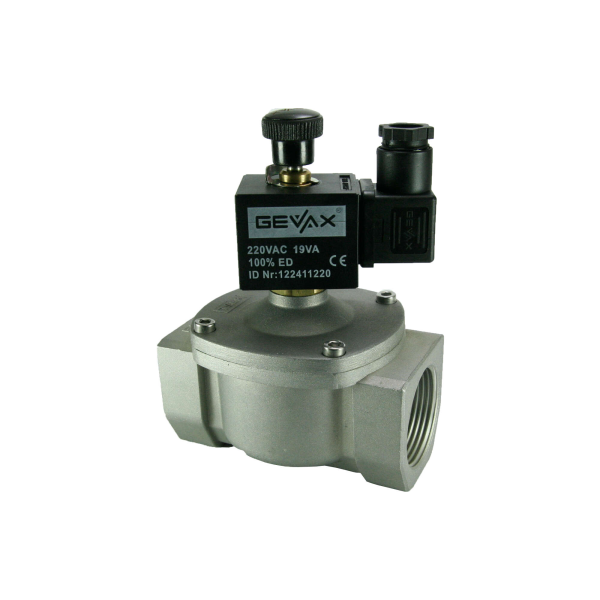

1 1/4" Solenoid Valve N.O. Aluminum Manual Reset N.Gas Direct Acting NBR 0 - 500 mBar G220V AC 19 VA
The prominent features of the aluminum body normally opened gas solenoid valve you are reviewing: Used as natural gas safety valve; shuts off gas flow upon signal from earthquake, fire, etc. sensors. Gas, Natural Gas Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Building Automation, Renewable Energy, Smart home systems
Product information
- Product code 3901-ADNG0P5-320-G220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Gas Valves |
|---|---|
| Connection Size | 1 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 0.5 |
| Orifice Size (mm) | 32 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | GEVAX |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Aluminum |
| KV Value | 2.85 l/min |
| Tracking Number | 70GS |
| Coil Type | TP4 |
| Product Weight (kg.) | 0,755 |
