3901-KDNG0P5-320-12DC | 1 1/4' N.C. Aluminum Man. Reset N.Gas Direct Acting NBR 0-500 mBar 12VDC10W
Log in to see prices here

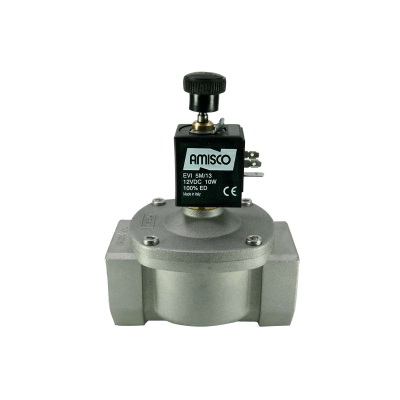

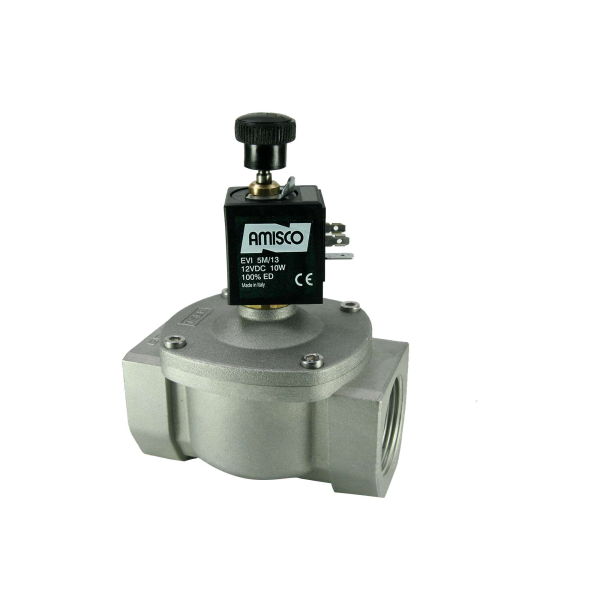

1 1/4" Solenoid Valve N.C. Aluminum Manual Reset N.Gas Direct Acting NBR 0 - 500 mBar 12V DC 10 W
The prominent features of the aluminum body normally closed gas solenoid valve you are reviewing: Used as natural gas safety valve; shuts off gas flow upon signal from earthquake, fire, etc. sensors. Gas, Natural Gas Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Building Automation, Renewable Energy, Smart home systems
Product information
- Product code 3901-KDNG0P5-320-12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Gas Valves |
|---|---|
| Connection Size | 1 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 0.5 |
| Orifice Size (mm) | 32 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 12V DC |
| Coil Power | 10 W |
| Body Material | Aluminum |
| KV Value | 28 m³/h |
| Tracking Number | 01GS |
| Coil Type | TP1 |
| Product Weight (kg.) | 0.69 |
