3901-KHND004-150-24DC | 1/2' N.C. For Gas Assisted Lift Diaphragm Controlled NBR 0-4 Bar 24VDC 17W
Log in to see prices here

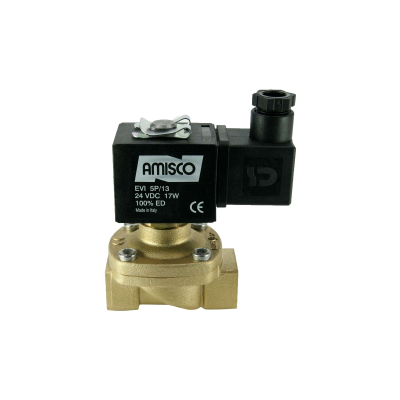

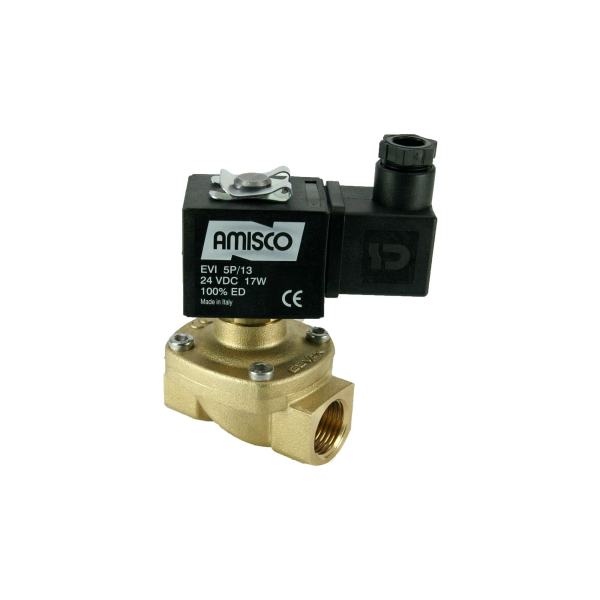

1/2" Solenoid Valve N.C. For Gas Assisted Lift Diaphragm Controlled NBR 0 - 4 Bar 24V DC 17 W
The prominent features of the brass body normally closed gas solenoid valve you are reviewing: Special valve. Gas Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Building Automation, Wending Machines, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry, Smart home systems
Product information
- Product code 3901-KHND004-150-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Gas Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Diaphragm Controlled |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 4 |
| Orifice Size (mm) | 15 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 65 l/min |
| Tracking Number | 06NH |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.625 |
