3901A-KDNC1P5-080-110AC | 3/8' N.C. Aluminum For Gas Direct Acting NBR 0-1.5 Bar 110VAC 19VA
Log in to see prices here

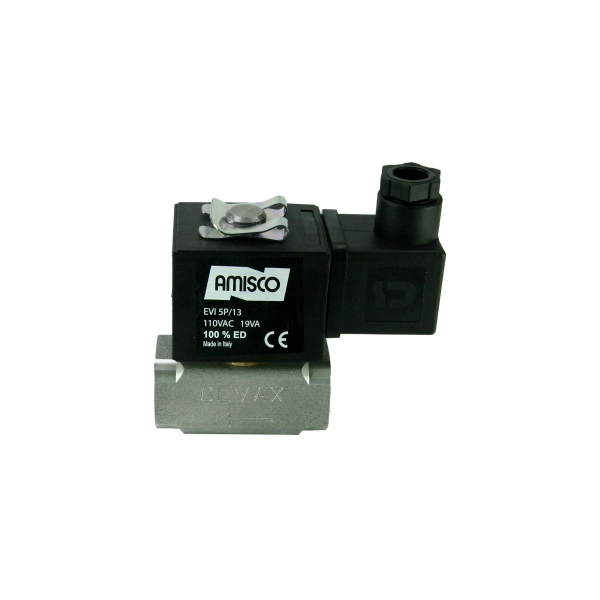

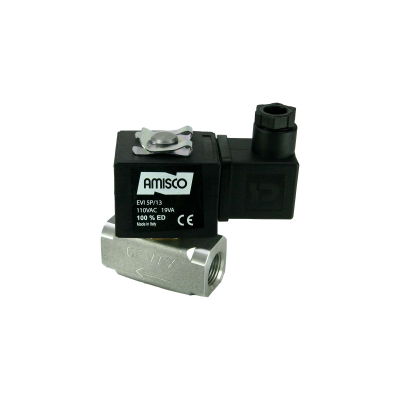

3/8" Solenoid Valve N.C. Aluminum For Gas Direct Acting NBR 0 - 1.5 Bar 110V AC 19 VA
The prominent features of the aluminum body normally closed gas solenoid valve you are reviewing: Large orifice, high flow rate, seal element suitable for gas. Air, Water, Gas, Vacuum, Natural Gas, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Recycling, Water Treatment
Product information
- Product code 3901A-KDNC1P5-080-110AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Gas Valves |
|---|---|
| Connection Size | 3/8" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 1.5 |
| Orifice Size (mm) | 8 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 110V AC |
| Coil Power | 19 VA |
| Body Material | Aluminum |
| KV Value | 15 l/min |
| Tracking Number | 01NF |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.345 |
