4901-ABEF003-250-24DC | 1' N.O. Steam Pilot Operated EPDM 0.5-3 Bar 24VDC 17W
Log in to see prices here

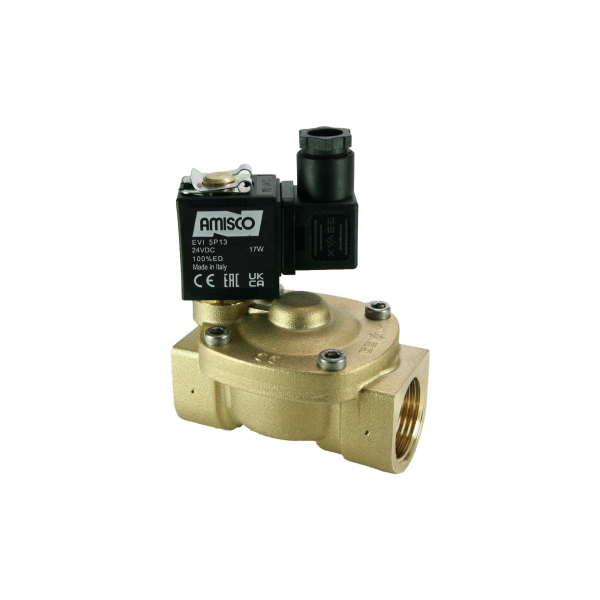

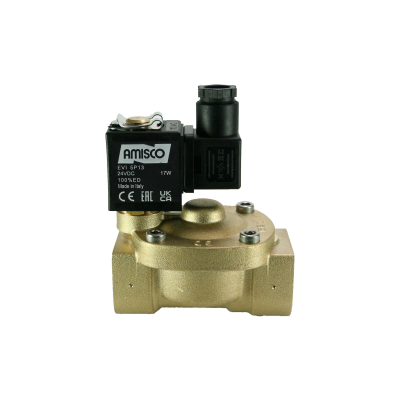

1" Solenoid Valve N.O. Steam Pilot Operated EPDM 0.5 - 3 Bar 24V DC 17 W
Product information
- Product code 4901-ABEF003-250-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Steam Valves |
|---|---|
| Connection Size | 1" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 3 |
| Orifice Size (mm) | 25 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 180 l/min |
| Tracking Number | 70IO |
| Coil Type | TP4 |
| Product Weight (kg.) | 1,045 |
