4901-ABEI003-500-220AC | 2' N.O. Steam Pilot Operated EPDM 0.5-3 Bar 220VAC 19VA
Log in to see prices here

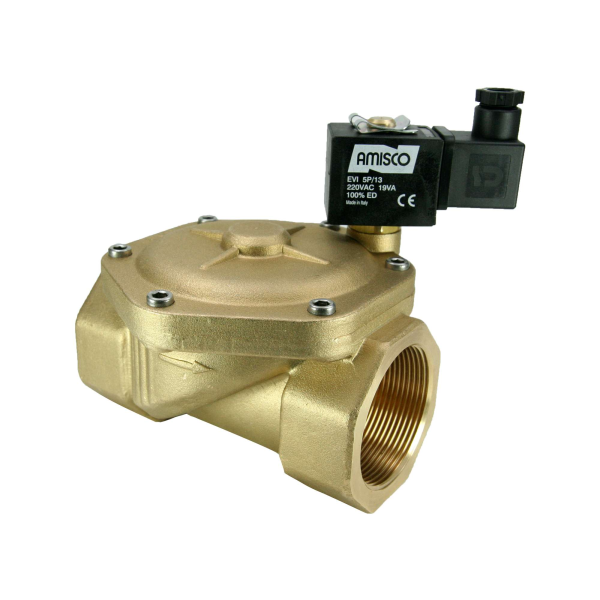

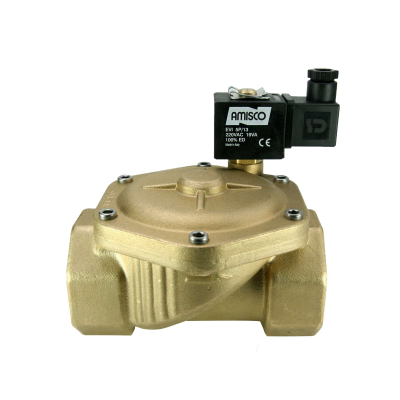

2" Solenoid Valve N.O. Steam Pilot Operated EPDM 0.5 - 3 Bar 220V AC 19 VA
The prominent features of the brass body normally opened steam solenoid valve you are reviewing: Diaphragm type, sealing element suitable for steam. Hot Water, Steam Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Washing Machines, Renewable Energy, Water Treatment, Paint Industry
Product information
- Product code 4901-ABEI003-500-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Steam Valves |
|---|---|
| Connection Size | 2" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 3 |
| Orifice Size (mm) | 50 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 575 l/min |
| Tracking Number | 70IX |
| Coil Type | TP4 |
| Product Weight (kg.) | 3.745 |
