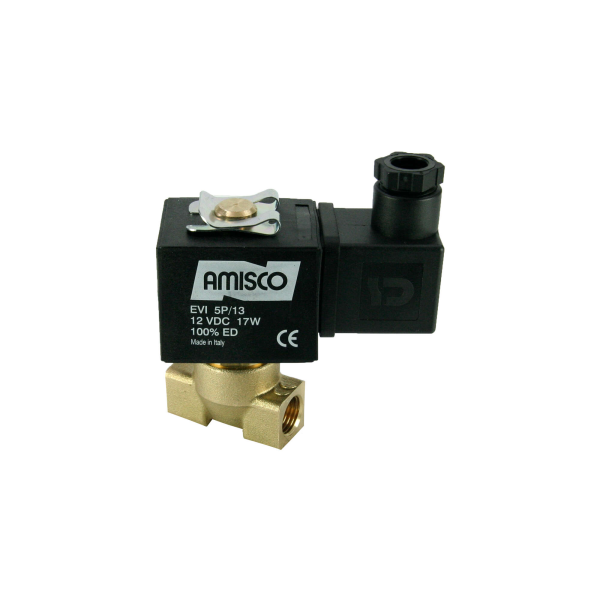

4901-KDEB006-040-12DC | 1/4" Solenoid Valve N.C. Steam Direct Acting EPDM 0 - 6 Bar 12V DC 17 W
Log in to see prices here
1/4" Solenoid Valve N.C. Steam Direct Acting EPDM 0 - 6 Bar 12V DC 17 W
The prominent features of the brass body normally closed steam solenoid valve you are reviewing: Sealing element suitable for steam. Hot Water, Steam Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Washing Machines, Renewable Energy, Water Treatment, Paint Industry
Product information
- Product code 4901-KDEB006-040-12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Steam Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 6 |
| Orifice Size (mm) | 4 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | Amisco |
| Coil Voltage | 12V AC |
| Coil Power | 17 W |
| Body Material | Stainlees Steels |
| KV Value | 5.1 l/min |
| Tracking Number | 05IC |
| Coil Type | TP4 |
| Product Weight (kg.) | 0,375 |
