4901-KHEF003-250-220AC | 1' N.C. Steam Assisted Lift Diaphragm Controlled EPDM 0-3 Bar 220VAC 19VA
Log in to see prices here

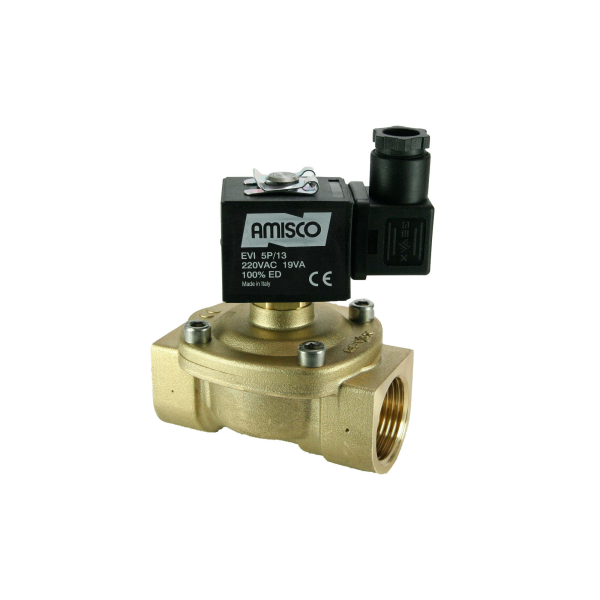

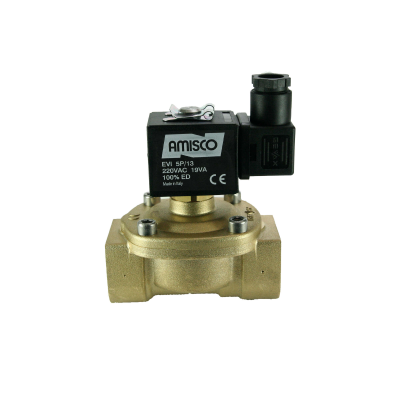

1" Solenoid Valve N.C. Steam Assisted Lift Diaphragm Controlled EPDM 0 - 3 Bar 220V AC 19 VA
The prominent features of the brass body normally closed steam solenoid valve you are reviewing: Diaphragm type, sealing element suitable for steam. Hot Water, Steam Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Washing Machines, Renewable Energy, Water Treatment, Paint Industry
Product information
- Product code 4901-KHEF003-250-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Steam Valves |
|---|---|
| Connection Size | 1" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Diaphragm Controlled |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 3 |
| Orifice Size (mm) | 25 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 135 l/min |
| Tracking Number | 05IO |
| Coil Type | TP4 |
| Product Weight (kg.) | 1.015 |
