4911-ABPE006-190-12DC | 3/4' N.O. Piston Steam Pilot Operated PTFE 0.5-6 Bar 12VDC 17W
Log in to see prices here

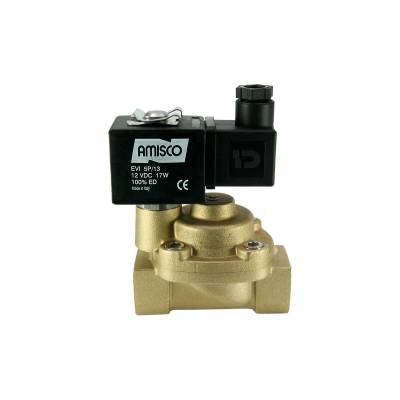

3/4" Solenoid Valve N.O. Piston Steam Pilot Operated PTFE 0.5 - 6 Bar 12V DC 17 W
The prominent features of the brass body normally opened steam solenoid valve you are reviewing: PTFE piston and sealing element suitable for steam. Hot Water, Steam Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Washing Machines, Renewable Energy, Water Treatment
Product information
- Product code 4911-ABPE006-190-12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Steam Valves |
|---|---|
| Connection Size | 3/4" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | PTFE |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 6 |
| Orifice Size (mm) | 19 |
| Temperature (°C) | -10°C +180°C |
| Coil Brand | Amisco |
| Coil Voltage | 12V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 105 l/min |
| Tracking Number | 70SL |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.925 |
