4911-KBPF010-250-24DC | 1' N.C. Piston Steam Pilot Operated PTFE 0.5-10 Bar 24VDC 17W
Log in to see prices here

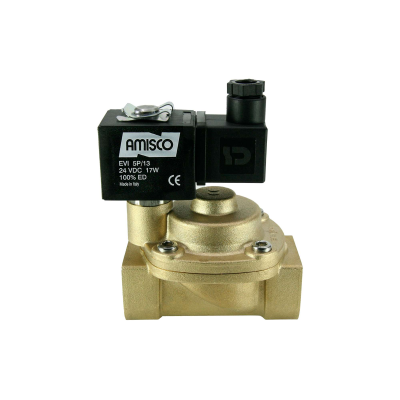

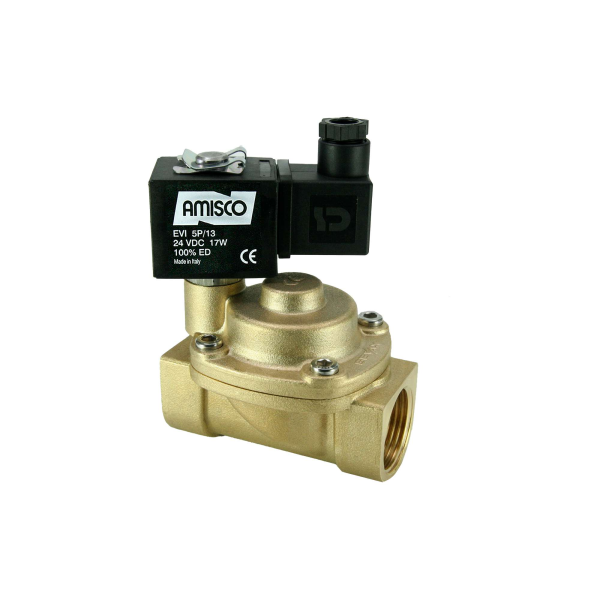

1" Solenoid Valve N.C. Piston Steam Pilot Operated PTFE 0.5 - 10 Bar 24V DC 17 W
The prominent features of the brass body normally closed steam solenoid valve you are reviewing: PTFE piston and sealing element suitable for steam. Hot Water, Steam Recommended for use in applications such as etc. High Differential Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Washing Machines, Renewable Energy, Water Treatment
Product information
- Product code 4911-KBPF010-250-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Steam Valves |
|---|---|
| Connection Size | 1" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | PTFE |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 25 |
| Temperature (°C) | -10°C +180°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 185 l/min |
| Tracking Number | 01SO |
| Coil Type | TP4 |
| Product Weight (kg.) | 1.285 |
