4911C-ABPD010-120-G220AC | 1/2' N.O. Nickel Plated Piston Steam Pilot Operated PTFE 0.5-10 Bar G220
Log in to see prices here

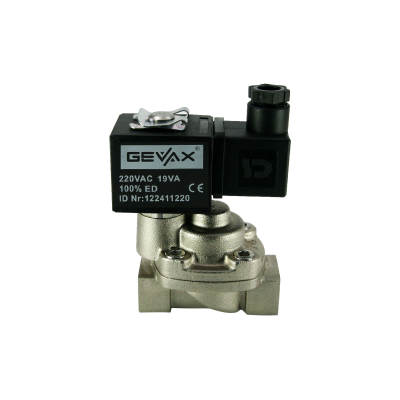

1/2" Solenoid Valve N.O. Nickel Plated Piston Steam Pilot Operated PTFE 0.5 - 10 Bar G220V AC 19 VA
The prominent features of the nickel plated body normally opened steam solenoid valve you are reviewing: PTFE piston and sealing element suitable for steam, corrosion-resistant nickel plating. Hot Water, Steam Recommended for use in applications such as etc. High Differential Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Washing Machines, Renewable Energy, Water Treatment
Product information
- Product code 4911C-ABPD010-120-G220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Steam Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | PTFE |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 12 |
| Temperature (°C) | -10°C +180°C |
| Coil Brand | GEVAX |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Nickel Plated Brass |
| KV Value | 65 l/min |
| Tracking Number | 72SH |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.755 |
