4911C-KBPE010-190-24AC | 3/4' N.C. Nickel Plated Piston Steam Pilot Operated PTFE 0.5-10 Bar 24VAC
Log in to see prices here

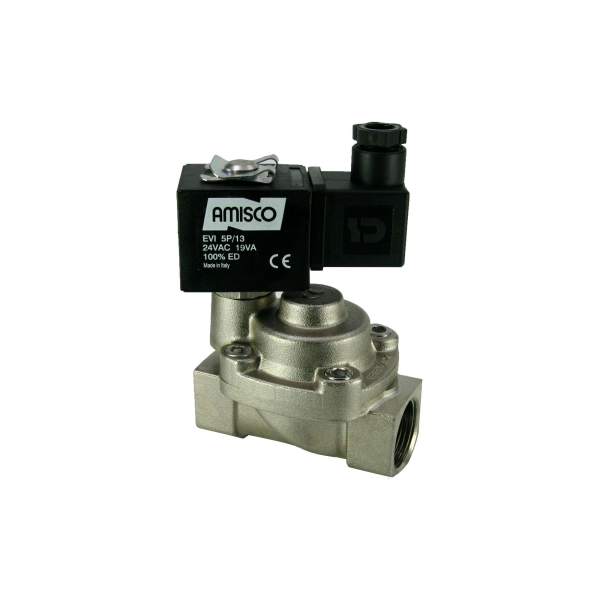

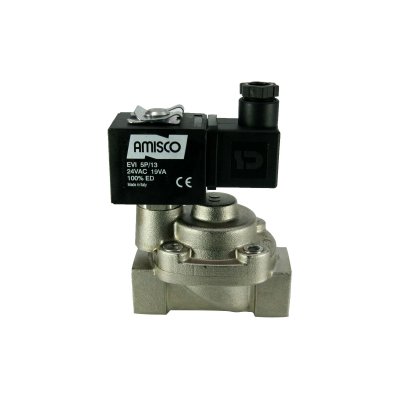

3/4" Solenoid Valve N.C. Nickel Plated Piston Steam Pilot Operated PTFE 0.5 - 10 Bar 24V AC 19 VA
Product information
- Product code 4911C-KBPE010-190-24AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Steam Valves |
|---|---|
| Connection Size | 3/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | PTFE |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 19 |
| Temperature (°C) | -10°C +180°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V AC |
| Coil Power | 19 VA |
| Body Material | Nickel Plated Brass |
| KV Value | 105 l/min |
| Tracking Number | 02SL |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.925 |
