4941-KDEB006-018-24DC | 1/4' N.C. Steam(SS tube) Direct Acting EPDM 0-6 Bar 24VDC 10W
Log in to see prices here

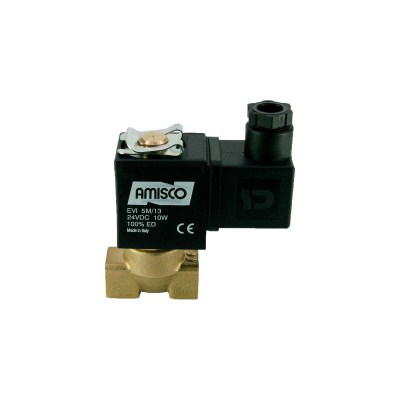

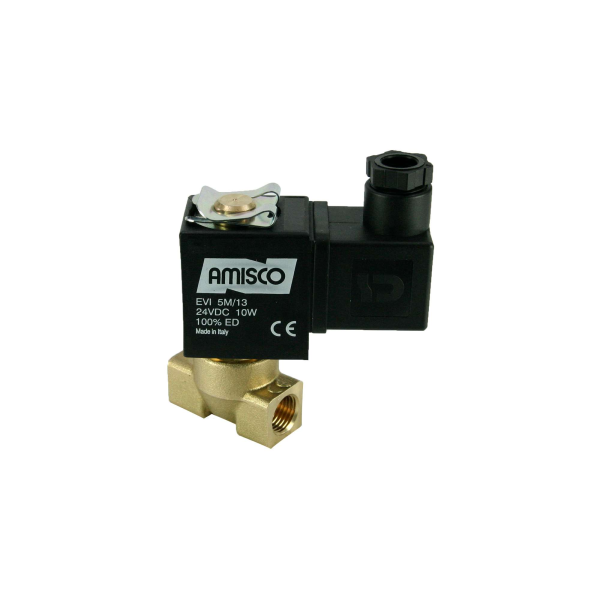

1/4" Solenoid Valve N.C. Steam(SS tube) Direct Acting EPDM 0 - 6 Bar 24V DC 10 W
The prominent features of the brass body normally closed steam solenoid valve you are reviewing: Flow control type with plastic cap for easy flow adjustment, sealing element suitable for steam. Hot Water, Steam Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Washing Machines, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 4941-KDEB006-018-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Steam Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 6 |
| Orifice Size (mm) | 1.8 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 10 W |
| Body Material | Brass |
| KV Value | 1.5 l/min |
| Tracking Number | 15IC |
| Coil Type | TP1 |
| Product Weight (kg.) | 0.31 |
