5701-KDV0008-020-220AC | N.C. Pilate Ex-Proof FKM 0-8 Bar 220VAC 3.2VA
Log in to see prices here

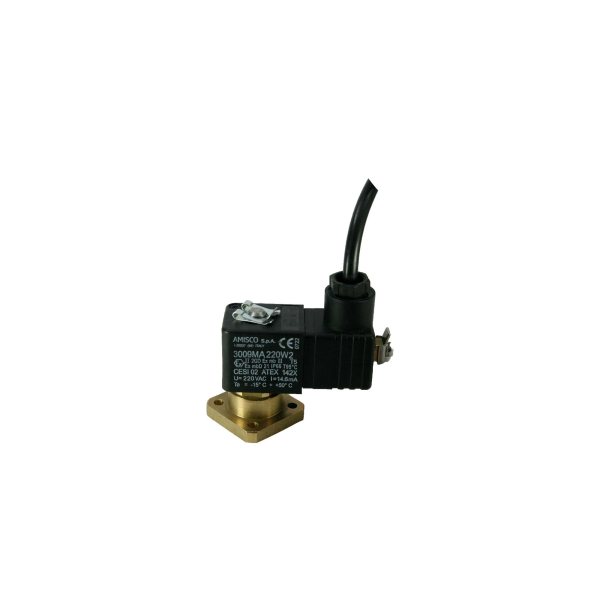

Solenoid Valve N.C. Pilate Ex-Proof FKM 0 - 8 Bar 220V AC 3.2 VA
The prominent features of the brass body normally closed ex-proof solenoid valve you are reviewing: Can be used independently or as a group valve mounted on a manifold plate, energy-efficient. Air, Water, Gas, Vacuum, Chemical, Hot Water, Natural Gas, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 5701-KDV0008-020-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Ex-Proof Valves |
|---|---|
| Connection Size | No Size |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 8 |
| Orifice Size (mm) | 2 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 3.2 VA |
| Body Material | Brass |
| KV Value | 1.7 l/min |
| Tracking Number | 01E- |
| Coil Type | TP7 |
| Product Weight (kg.) | 0.33 |
