5801-KBVI003-500-24DC | 2' N.C. Ex-Proof Economical Serie Pilot Operated FKM 0.5-3 Bar 24VDC 3W
Log in to see prices here

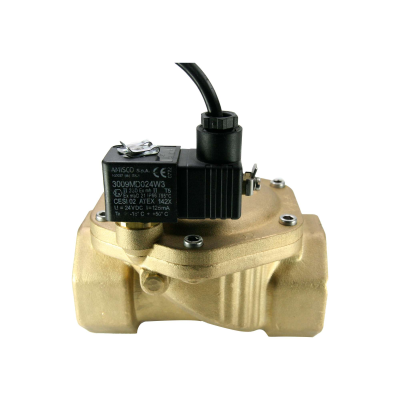

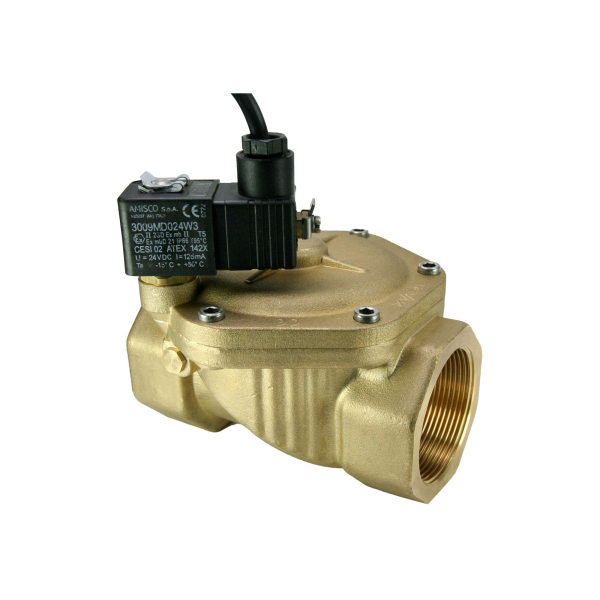

2" Solenoid Valve N.C. Ex-Proof Economical Serie Pilot Operated FKM 0.5 - 3 Bar 24V DC 3 W
The prominent features of the brass body normally closed ex-proof solenoid valve you are reviewing: Diaphragm type, energy-efficient, high flow rate. Air, Water, Gas, Chemical, Hot Water, LPG & LNG Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 5801-KBVI003-500-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Ex-Proof Valves |
|---|---|
| Connection Size | 2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 3 |
| Orifice Size (mm) | 50 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 3 W |
| Body Material | Brass |
| KV Value | 575 l/min |
| Tracking Number | 03EX |
| Coil Type | TP7 |
| Product Weight (kg.) | 3.71 |
