5901-KBNF016-250-G220AC | 1' N.C. Ex-Proof Pilot Operated NBR 0.5-16 Bar G220VAC 13VA
Log in to see prices here

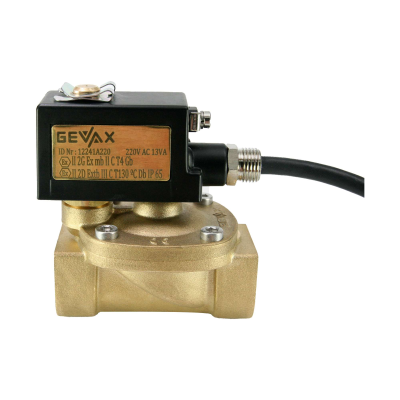

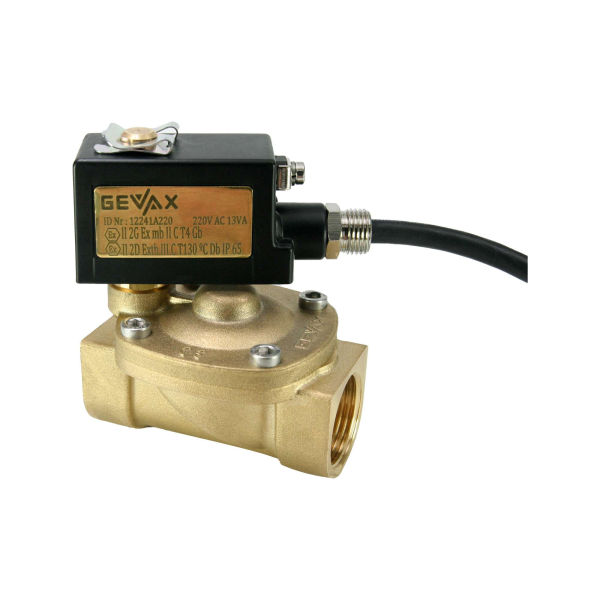

1" Solenoid Valve N.C. Ex-Proof Pilot Operated NBR 0.5 - 16 Bar G220V AC 13 VA
The prominent features of the brass body normally closed ex-proof solenoid valve you are reviewing: Diaphragm type, energy-efficient, high flow rate. Air, Water, Gas, Chemical, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Lubrication, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 5901-KBNF016-250-G220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Ex-Proof Valves |
|---|---|
| Connection Size | 1" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 25 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | GEVAX |
| Coil Voltage | 220V AC |
| Coil Power | 13 VA |
| Body Material | Brass |
| KV Value | 180 l/min |
| Tracking Number | 04EO |
| Coil Type | TP8 |
| Product Weight (kg.) | 1.46 |
