5901-KDND016-020-G220AC | 1/2" N.C. Ex-Proof Direct Acting NBR 0 - 16 Bar G220V AC 13 VA
Log in to see prices here

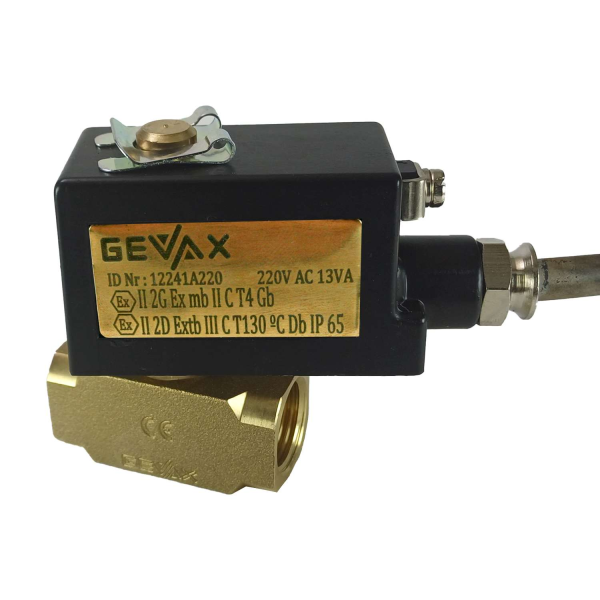

1/2" Solenoid Valve N.C. Ex-Proof Direct Acting NBR 0 - 16 Bar G220V AC 13 VA
The prominent features of the brass body normally closed ex-proof solenoid valve you are reviewing: Energy-efficient. Air, Water, Gas, Vacuum, Chemical, Oils, Diesel, Natural Gas, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Lubrication, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 5901-KDND016-020-G220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Ex-Proof Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 2 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | GEVAX |
| Coil Voltage | 220V AC |
| Coil Power | 13 VA |
| Body Material | Brass |
| KV Value | 1.7 l/min |
| Tracking Number | 28AI |
| Coil Type | TP8 |
| Product Weight (kg.) | 0,760 |
