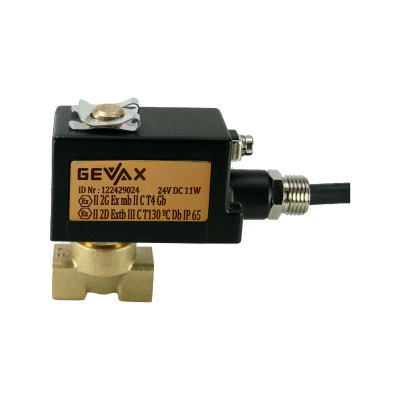

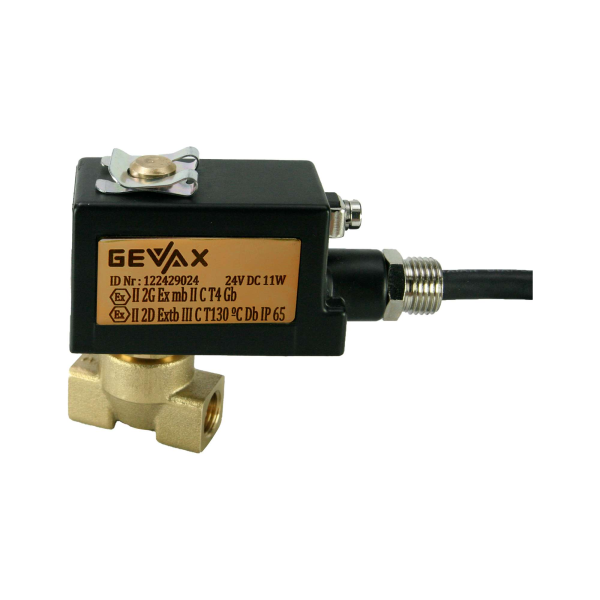

5981-KDEB016-018-G24DC | 1/4' N.C. Ex-Proof for Oxygen Direct Acting EPDM 0-16 Bar G24VDC 11W
Log in to see prices here
1/4" Solenoid Valve N.C. Ex-Proof for Oxygen Direct Acting EPDM 0 - 16 Bar G24V DC 11 W
The prominent features of the brass body normally closed ex-proof solenoid valve you are reviewing: Special valve. Air, Water, Gas, Vacuum, Chemical, Hot Water Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 5981-KDEB016-018-G24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Ex-Proof Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 1.8 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | GEVAX |
| Coil Voltage | 24V DC |
| Coil Power | 11 W |
| Body Material | Brass |
| KV Value | 1.5 l/min |
| Tracking Number | 11EC |
| Coil Type | TP8 |
| Product Weight (kg.) | 0.68 |
