6541-KD00000-000-G24DC | N.C. Nickel Plated Lock Valve-Longer NBR 0-0 Bar G24VDC 17W
Log in to see prices here

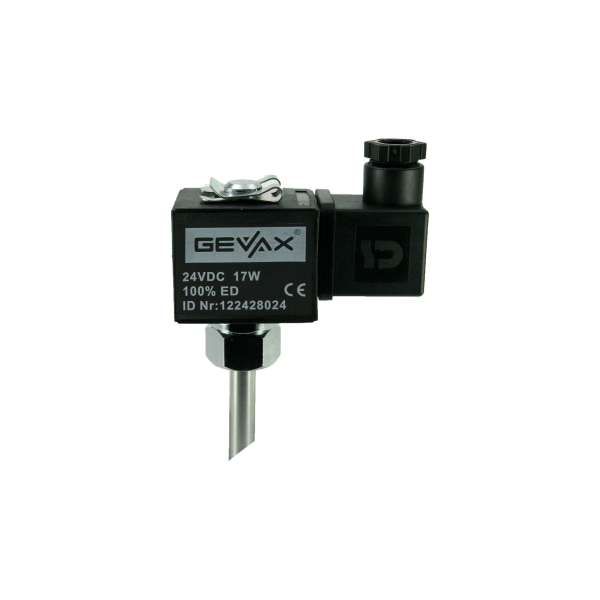

Solenoid Valve N.C. Nickel Plated Lock Valve - Longer NBR 0 - 0 Bar G24V DC 17 W
The prominent features of the nickel plated body normally closed lock solenoid valve you are reviewing: Long-pin locking solenoid.
The usage area where the product is frequently preferred is; Automotive, Textile, Wending Machines, Washing Machines, Smart home systems, Packaging machines
Product information
- Product code 6541-KD00000-000-G24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Lock Valves |
|---|---|
| Connection Size | No Size |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Orifice Size (mm) | None |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | GEVAX |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Nickel Plated Brass |
| KV Value | 0 l/min |
| Tracking Number | 02U- |
| Coil Type | TP4 |
| Product Weight (kg.) | Normalde Kapalı |
