6611-AD00001-080-24DC | N.O. Aluminum Pinch NBR 0-1 Bar 24VDC 17W
Log in to see prices here

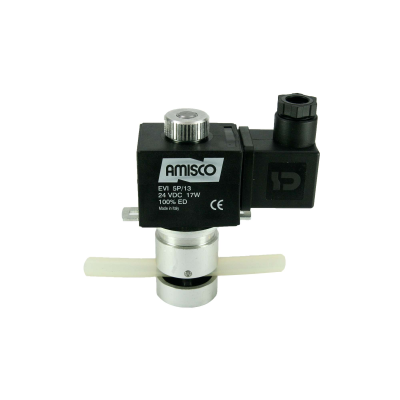

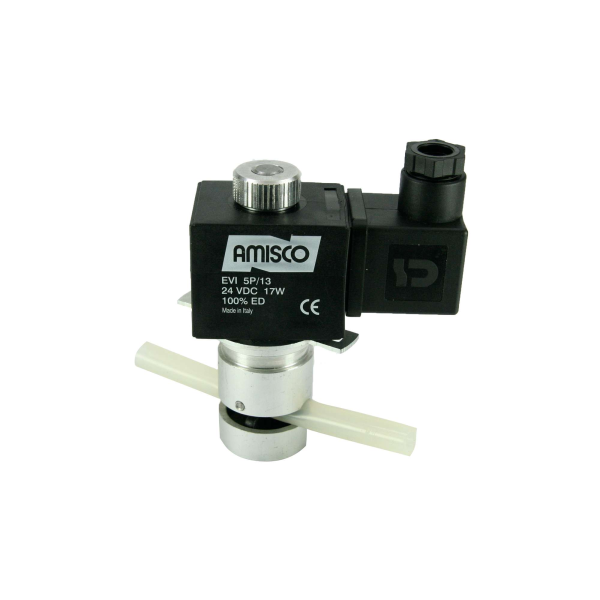

Solenoid Valve N.O. Aluminum Pinch NBR 0 - 1 Bar 24V DC 17 W
The prominent features of the aluminum body normally opened pinch solenoid valve you are reviewing: Fluid passing through silicone hose is isolated from external influences. Air, Water, Gas, Chemical Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Food, Medical, Wending Machines, Renewable Energy, Beverage Industry
Product information
- Product code 6611-AD00001-080-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Pinch Valves |
|---|---|
| Connection Size | No Size |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 1 |
| Orifice Size (mm) | 8 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Aluminum |
| KV Value | 15 l/min |
| Tracking Number | 70T- |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.315 |
