6612-KD00001-080-220AC | N.C. Aluminum 3/2 Ways Pinch NBR 0-1 Bar 220VAC 19VA
Log in to see prices here

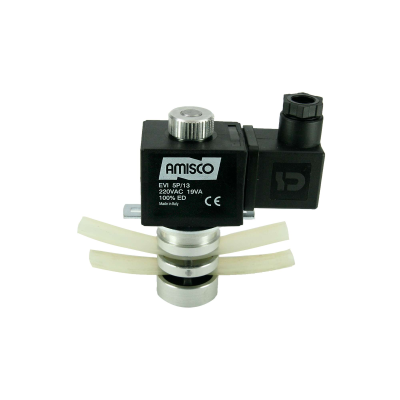

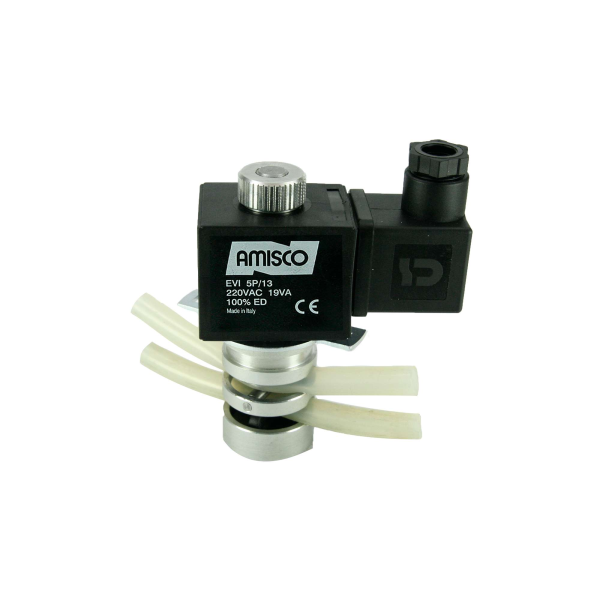

Solenoid Valve N.C. Aluminum 3/2 Ways Pinch NBR 0 - 1 Bar 220V AC 19 VA
The prominent features of the aluminum body normally closed pinch solenoid valve you are reviewing: Fluid passing through silicone hose is isolated from external influences. Air, Water, Gas, Chemical Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Food, Medical, Wending Machines, Renewable Energy, Beverage Industry
Product information
- Product code 6612-KD00001-080-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Pinch Valves |
|---|---|
| Connection Size | No Size |
| Number of Paths | 3/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 1 |
| Orifice Size (mm) | 8 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Aluminum |
| KV Value | 15 l/min |
| Tracking Number | 04T- |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.315 |
