6642-ADNB015-016-220AC | 1/4' N.O. 3/2 Ways Top Inlet Manual Direct Acting NBR 0-15 Bar 220VAC 13VA
Log in to see prices here

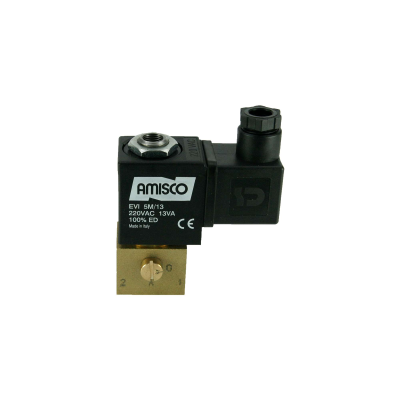

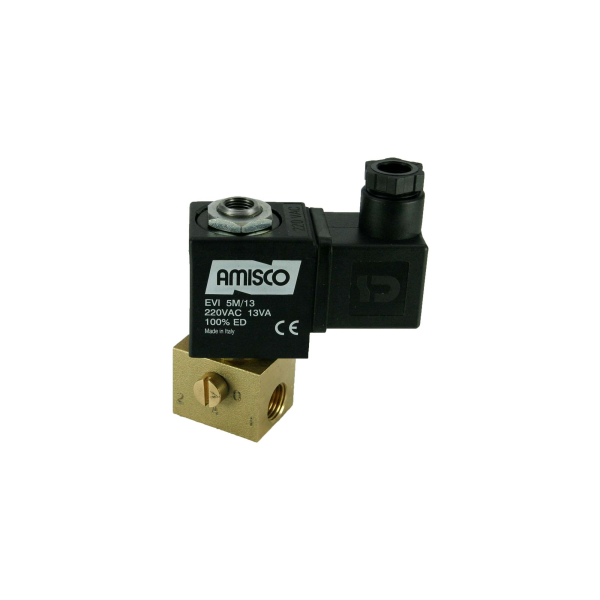

1/4" Solenoid Valve N.O. 3/2 Ways Top Inlet Manual Direct Acting NBR 0 - 15 Bar 220V AC 13 VA
The prominent features of the brass body normally opened special solenoid valve you are reviewing: Can be used as pilot valve for high-flow valves. Air, Vacuum Recommended for use in applications such as etc. Zero Differantial Pressure, Pneumatic works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Compressor, Machining Process
Product information
- Product code 6642-ADNB015-016-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Special Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 3/2 |
| Position | Normally Open |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 15 |
| Orifice Size (mm) | 1.6 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 13 VA |
| Body Material | Brass |
| KV Value | 1.2 l/min |
| Tracking Number | 70TC |
| Coil Type | TP1 |
| Product Weight (kg.) | 0.34 |
