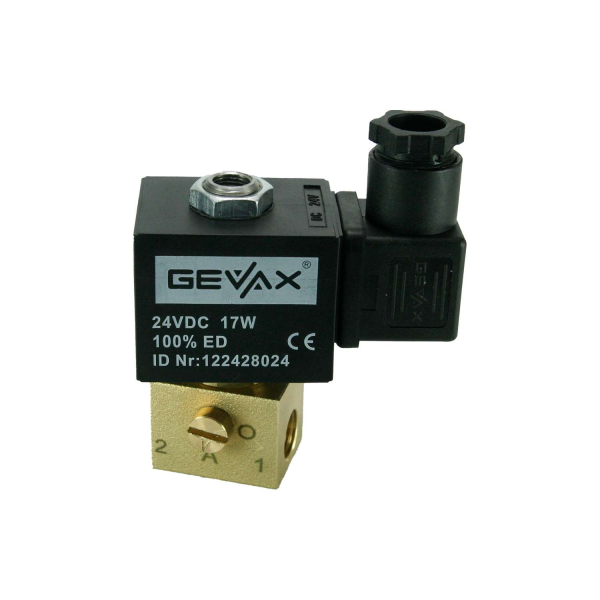

6642-KDEB015-016-G24DC I 1/4" N.C. 3/2 Ways Manual Direct Acting EPDM 0 - 15 Bar G24V DC 17 W
Log in to see prices here
1/4" Solenoid Valf N.K. 3/2 Yollu Direkt Çekmeli Manuel EPDM 0 - 15 Bar 24V DC 10 W
Product information
- Product code 6642-KDEB015-016-G24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Special Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 3/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 15 |
| Orifice Size (mm) | 1.6 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | GEVAX |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 1.2 l/min |
| Coil Type | TP4 |
| Product Weight (kg.) | 0,340 |
