6651-KHED002-150-G12DC|N.C.Hose Connection Assisted Lift Diaphragm Controlled EPDM 0-2Bar G12V DC17W
Log in to see prices here

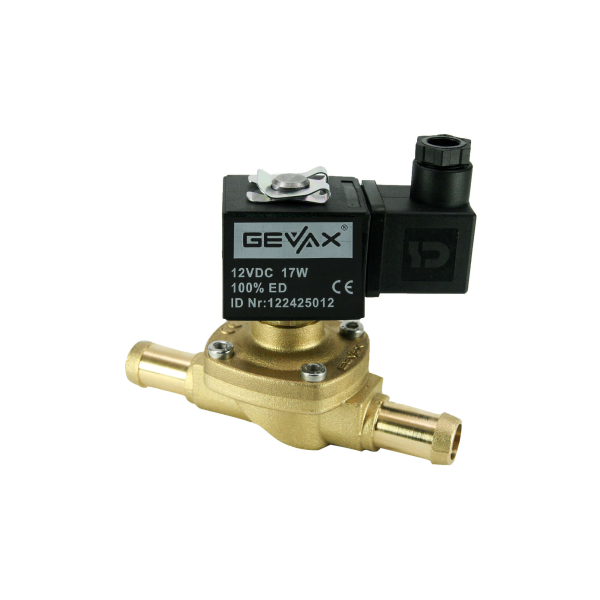

1/2" Solenoid Valve N.C. Hose Connection Assisted Lift Diaphragm Controlled EPDM 0 - 2 Bar G12V DC 17 W
The prominent features of the brass body normally closed special solenoid valve you are reviewing: Hose-connected, high flow rate. Air, Water, Vacuum, Chemical, Hot Water Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry, Smart home systems
Product information
- Product code 6651-KHED002-150-G12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Special Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Diaphragm Controlled |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 2 |
| Orifice Size (mm) | 15 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | GEVAX |
| Coil Voltage | 12V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 1.7 l/min |
| Tracking Number | 04QH |
| Coil Type | TP4 |
| Product Weight (kg.) | 0,695 |
