6741-KDVA008-020-12DC | 1/8' N.C. Direct Acting FKM 0-8 Bar 12VDC 10W
Log in to see prices here

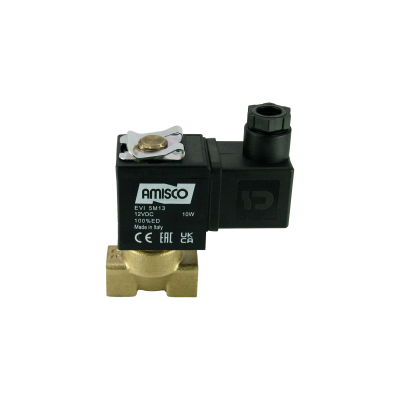

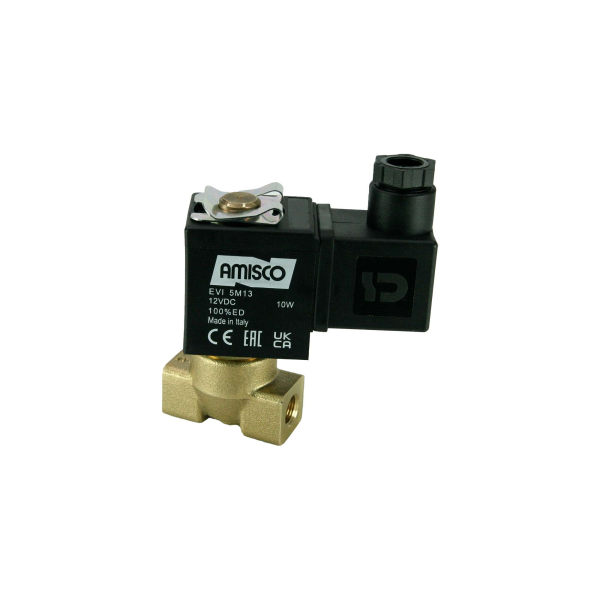

1/8" Solenoid Valve N.C. Direct Acting FKM 0 - 8 Bar 12V DC 10 W
The prominent features of the brass body normally closed special solenoid valve you are reviewing: Special valve. Air, Water, Gas, Vacuum, Chemical, Hot Water Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Food, Agricultural, Irrigation, Cooling, Compressor, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 6741-KDVA008-020-12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Special Valves |
|---|---|
| Connection Size | 1/8" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 8 |
| Orifice Size (mm) | 2 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 12V DC |
| Coil Power | 10 W |
| Body Material | Brass |
| KV Value | 1.7 l/min |
| Tracking Number | 02TA |
| Coil Type | TP1 |
| Product Weight (kg.) | 0.33 |
