6761-KDVB040-022-12DC | 1/4' N.C. Direct Acting FKM 0-40 Bar 12VDC 17W
Log in to see prices here

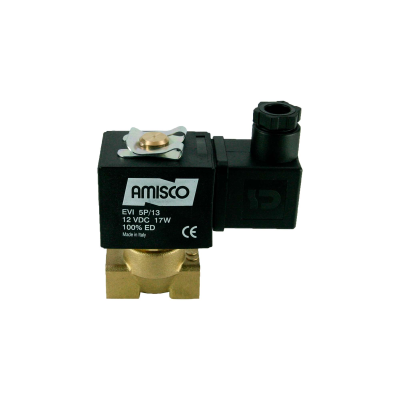

1/4" Solenoid Valve N.C. High Pressure Direct Acting FKM 0 - 40 Bar 12V DC 17 W
The prominent features of the brass body normally closed special solenoid valve you are reviewing: Equipped with disk diaphragm, suitable for high-pressure liquid media. Water, Hot Water Recommended for use in applications such as etc. Zero Differantial Pressure, High Differential Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 6761-KDVB040-022-12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Special Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 40 |
| Orifice Size (mm) | 2.2 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 12V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 2 l/min |
| Tracking Number | 08QC |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.375 |
