6801-KBNB016-080-24DC | 1/4' N.C. Latching Pilot Operated NBR 0.5-16 Bar 24VDC 10W
Log in to see prices here

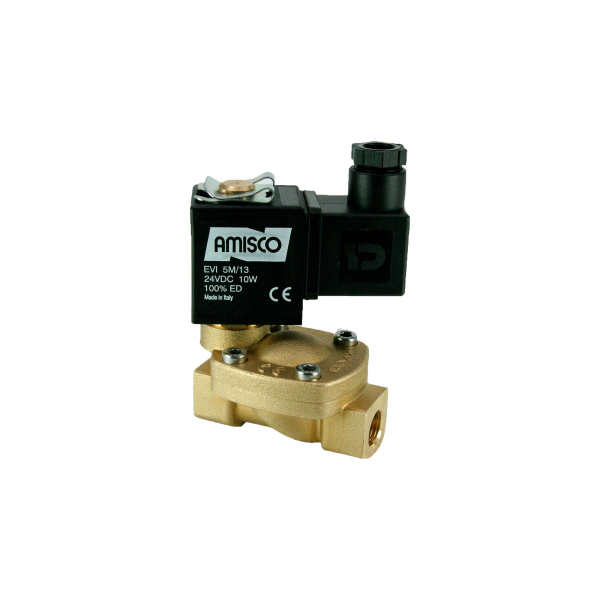

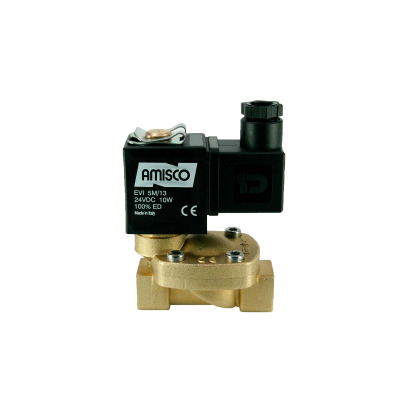

1/4" Solenoid Valve N.C. Latching Pilot Operated NBR 0.5 - 16 Bar 24V DC 10 W
Product information
- Product code 6801-KBNB016-080-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Special Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 8 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 10 W |
| Body Material | Brass |
| KV Value | 15 l/min |
| Tracking Number | 09XC |
| Coil Type | TP1 |
| Product Weight (kg.) | 0.56 |
