6801-KBNI006-500-12DC | 2' N.C. Latching Pilot Operated NBR 0.5-6 Bar 12VDC 17W
Log in to see prices here

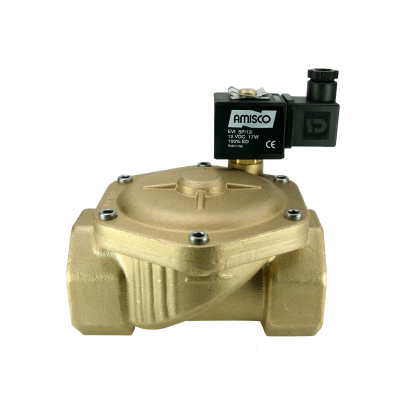

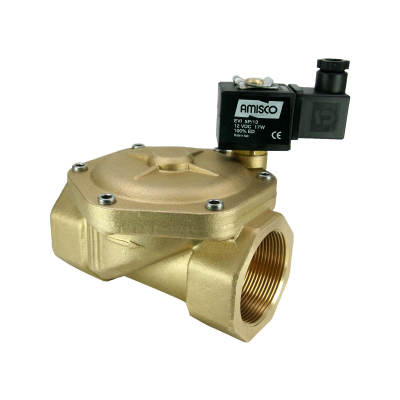

2" Solenoid Valve N.C. Latching Pilot Operated NBR 0.5 - 6 Bar 12V DC 17 W
The prominent features of the brass body normally closed special solenoid valve you are reviewing: Diaphragm type, energy-efficient, wide coil options. Air, Water, Gas, Chemical Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Building Automation, Washing Machines, Machining Process, Renewable Energy
Product information
- Product code 6801-KBNI006-500-12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Special Valves |
|---|---|
| Connection Size | 2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 6 |
| Orifice Size (mm) | 50 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 12V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 575 l/min |
| Tracking Number | 01XX |
| Coil Type | TP4 |
| Product Weight (kg.) | 3.745 |
