6801-KDNA006-025-12DC | 1/8' N.C. Latching Direct Acting NBR 0-6 Bar 12VDC 10W
Log in to see prices here

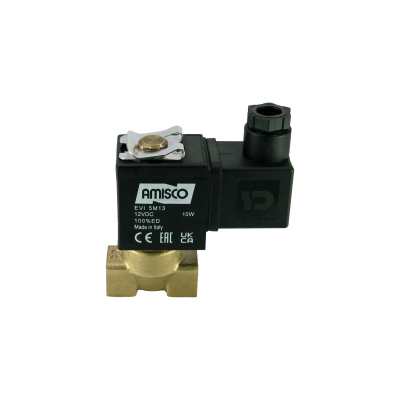

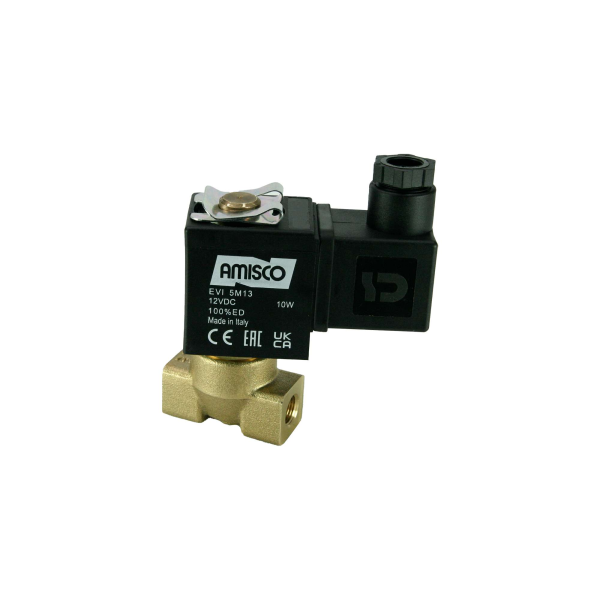

1/8" Solenoid Valve N.C. Latching Direct Acting NBR 0 - 6 Bar 12V DC 10 W
The prominent features of the brass body normally closed special solenoid valve you are reviewing: Energy-efficient, wide coil options. Air, Water, Gas, Vacuum, Chemical Recommended for use in applications such as etc. Zero Differantial Pressure, Pneumatic works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Building Automation, Washing Machines, Machining Process, Renewable Energy
Product information
- Product code 6801-KDNA006-025-12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Special Valves |
|---|---|
| Connection Size | 1/8" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 6 |
| Orifice Size (mm) | 2.5 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 12V DC |
| Coil Power | 10 W |
| Body Material | Brass |
| KV Value | 2.85 l/min |
| Tracking Number | 02XA |
| Coil Type | TP1 |
| Product Weight (kg.) | 0.33 |
