6831-KDNA016-012-230AC | 1/8' N.C. 90 degree Direct Acting NBR 0-16 Bar 230VAC 8.5VA
Log in to see prices here

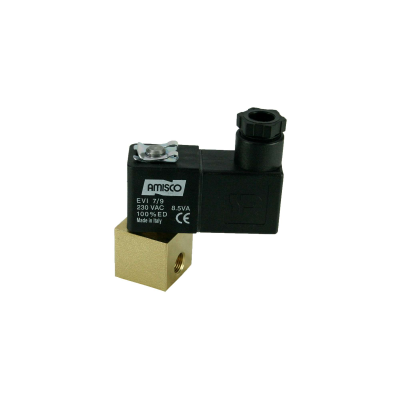

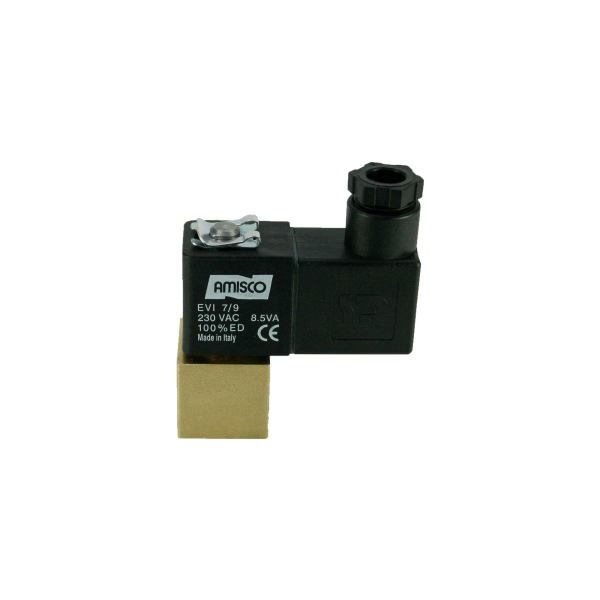

1/8" Solenoid Valve N.C. 90 Degree Direct Acting NBR 0 - 16 Bar 230V AC 8.5 VA
The prominent features of the brass body normally closed special solenoid valve you are reviewing: 90-degree inlet/outlet connection, compact size, energy-efficient. Air, Water, Gas, Vacuum Recommended for use in applications such as etc. Zero Differantial Pressure, Pneumatic works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Compressor, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Paint Industry
Product information
- Product code 6831-KDNA016-012-230AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Special Valves |
|---|---|
| Connection Size | 1/8" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 1.2 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 230V AC |
| Coil Power | 8.5 VA |
| Body Material | Brass |
| KV Value | 0.7 l/min |
| Tracking Number | 03QA |
| Coil Type | TP6 |
| Product Weight (kg.) | 0.205 |
