6951-KBEE010-190-12DC | 3/4' N.C. Latching Economical Serie-Man. Pilot Operated EPDM 0.5-10 Bar
Log in to see prices here

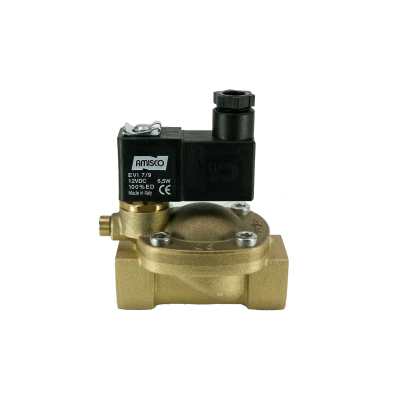

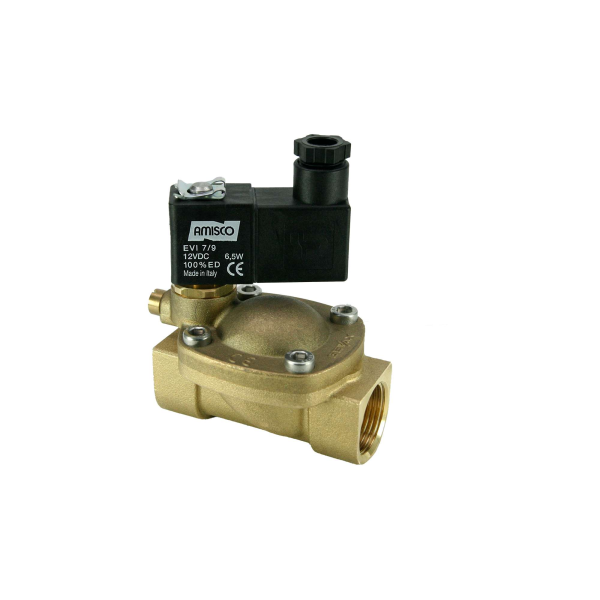

3/4" Solenoid Valve N.C. Latching Economical Serie - Manual Pilot Operated EPDM 0.5 - 10 Bar 12V DC 6.5 W
The prominent features of the brass body normally closed special solenoid valve you are reviewing: Diaphragm type, energy-efficient, economic series, manual override. Air, Water, Gas, Chemical, Hot Water Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Building Automation, Washing Machines, Machining Process, Renewable Energy
Product information
- Product code 6951-KBEE010-190-12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Special Valves |
|---|---|
| Connection Size | 3/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 19 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | Amisco |
| Coil Voltage | 12V DC |
| Coil Power | 6.5 W |
| Body Material | Brass |
| KV Value | 110 l/min |
| Tracking Number | 02XL |
| Coil Type | TP6 |
| Product Weight (kg.) | 0.655 |
