6961-KDNCVAKUM-060-24DC | 3/8' N.C. Nickel Plated Vacuum Direct Acting NBR 1-0 Bar 24VDC 10W
Log in to see prices here

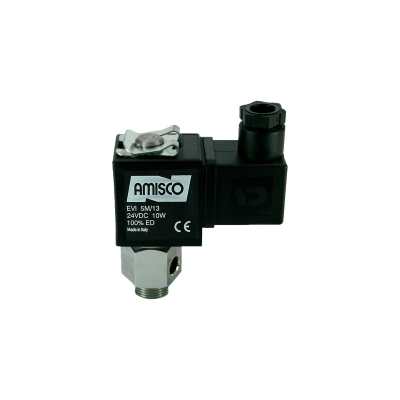

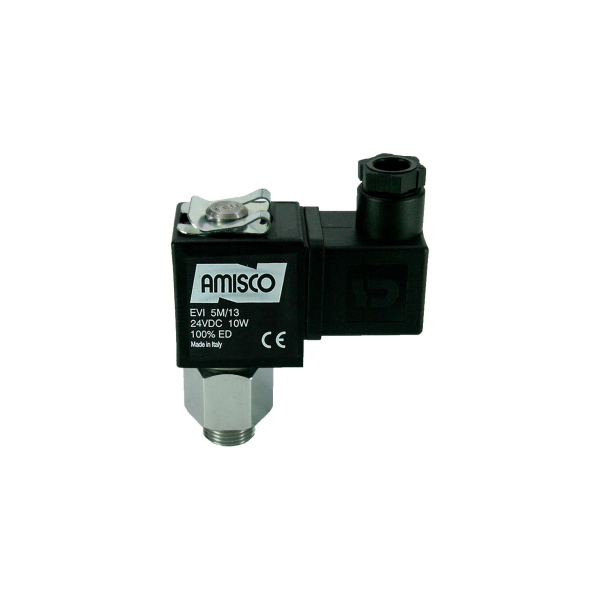

3/8" Solenoid Valve N.C. Nickel Plated Vacuum Direct Acting NBR -1 - 0 Bar 24V DC 10 W
The prominent features of the nickel plated body normally closed vacuum solenoid valve you are reviewing: Nickel-plated brass body, custom-designed vacuum valve, used in milking machines. Vacuum Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Food
Product information
- Product code 6961-KDNCVAKUM-060-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Vacuum Valves |
|---|---|
| Connection Size | 3/8" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | -1 |
| Orifice Size (mm) | 6 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 10 W |
| Body Material | Nickel Plated Brass |
| KV Value | 10 l/min |
| Tracking Number | 01QF |
| Coil Type | TP1 |
| Product Weight (kg.) | 0.27 |
