7801-KDPB100-012-220AC | 1/4' N.C.Stainless Steel High Pressure Direct Acting PTFE 0-100 Bar 220VAC
Log in to see prices here

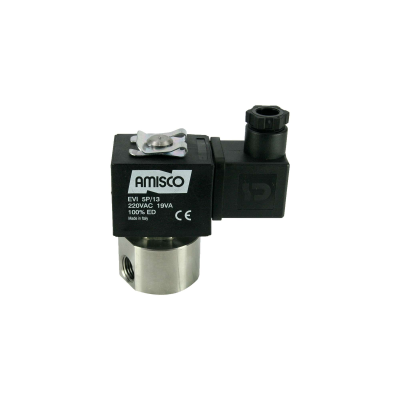

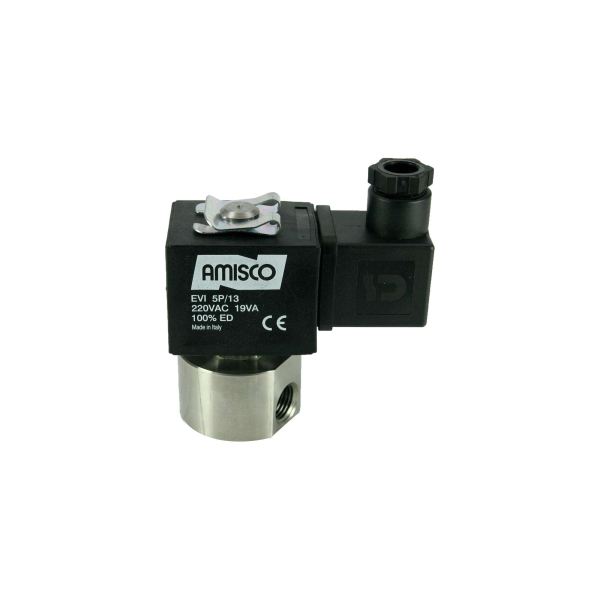

1/4" Solenoid Valve N.C. Stainless Steel High Pressure Direct Acting PTFE 0 - 100 Bar 220V AC 19 VA
The prominent features of the stainless steel body normally closed general purpose solenoid valve you are reviewing: Corrosion-resistant stainless steel body and internal parts, seal element resistant to high pressure. Water, Chemical, Hot Water Recommended for use in applications such as etc. Zero Differantial Pressure, High Differential Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Food, Agricultural, Medical, Irrigation, Cooling, Lubrication, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 7801-KDPB100-012-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Stainless Steel Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | PTFE |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 100 |
| Orifice Size (mm) | 1.2 |
| Temperature (°C) | -10°C +160°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Stainlees Steels |
| KV Value | 0.7 l/min |
| Tracking Number | 13OC |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.475 |
