7901-ADVB016-020-24DC | 1/4' N.O. Stainless Steel Direct Acting FKM 0-16 Bar 24VDC 17W
Log in to see prices here

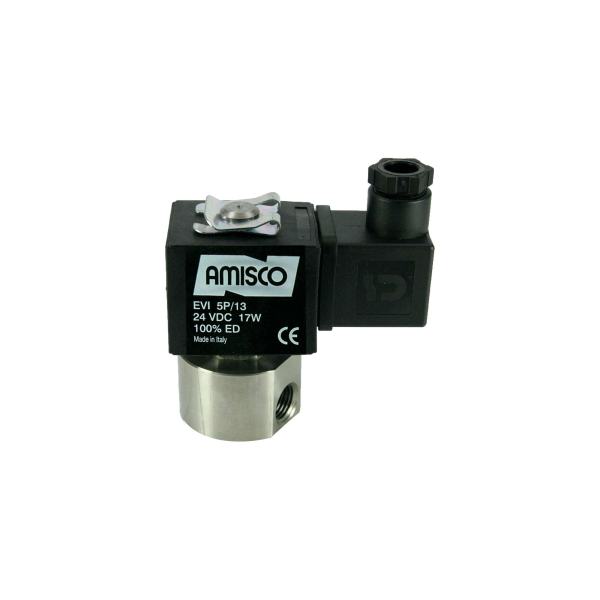

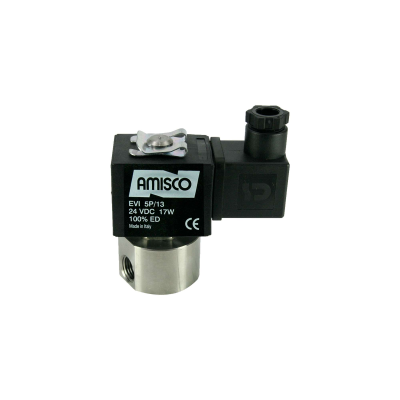

1/4" Solenoid Valve N.O. Stainless Steel Direct Acting FKM 0 - 16 Bar 24V DC 17 W
Product information
- Product code 7901-ADVB016-020-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Stainless Steel Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 2 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Stainlees Steels |
| KV Value | 1.7 l/min |
| Tracking Number | 70OC |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.475 |
