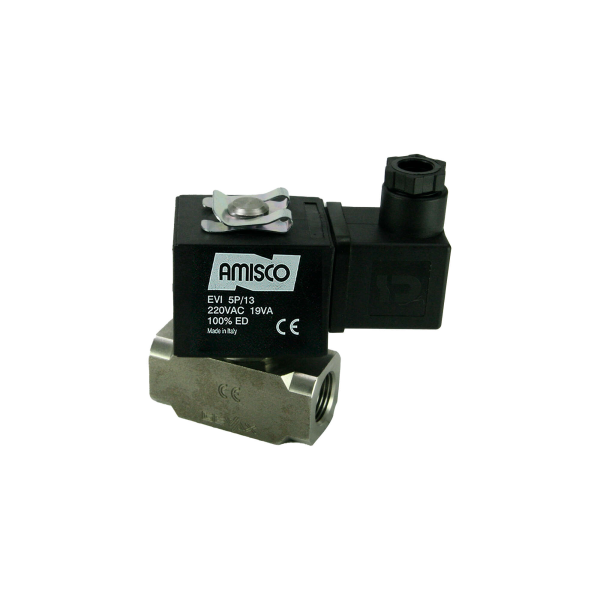

7901-KDEC005-060-220AC I 3/8" Solenoid Valve N.C. Stainless Steel Direct Acting EPDM 0 - 5 Bar 220V AC 19 VA
3/8" Solenoid Valve N.C. Stainless Steel Direct Acting EPDM 0 - 5 Bar 220V AC 19 VA
The prominent features of the stainless steel body normally closed general purpose solenoid valve you are reviewing: Corrosion-resistant stainless steel body and internal parts, large orifice, high flow rate, wide coil options. Air, Water, Gas, Vacuum, Chemical, Hot Water Recommended for use in applications such as etc. Zero Differantial Pressure, Pneumatic works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Food, Agricultural, Medical, Irrigation, Cooling, Compressor, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry, Smart home systems
Product information
- Product code 7901-KDEC005-060-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Stainless Steel Valves |
|---|---|
| Connection Size | 3/8" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 5 |
| Orifice Size (mm) | 6 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Stainlees Steels |
| KV Value | 10 l/min |
| Tracking Number | 10OF |
| Coil Type | TP4 |
| Product Weight (kg.) | 0,465 |
