7901-KDPA016-020-24AC | 1/8' N.C. Stainless Steel Direct Acting PTFE 0-16 Bar 24VAC 13VA
Log in to see prices here

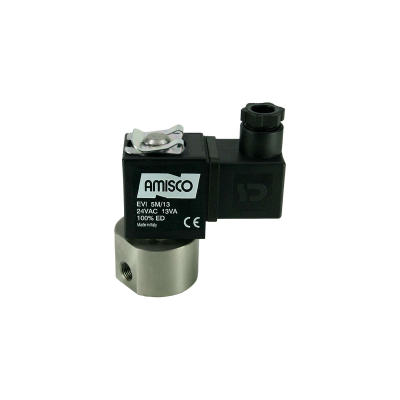

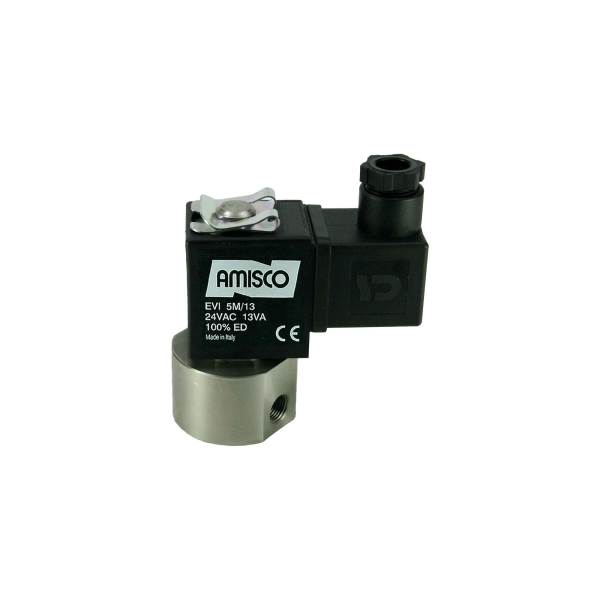

1/8" Solenoid Valve N.C. Stainless Steel Direct Acting PTFE 0 - 16 Bar 24V AC 13 VA
The prominent features of the stainless steel body normally closed general purpose solenoid valve you are reviewing: Corrosion-resistant stainless steel body and internal parts, wide coil options. Water, Chemical, Hot Water, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Food, Agricultural, Medical, Irrigation, Cooling, Lubrication, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry, Smart home systems
Product information
- Product code 7901-KDPA016-020-24AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Stainless Steel Valves |
|---|---|
| Connection Size | 1/8" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | PTFE |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 2 |
| Temperature (°C) | -10°C +160°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V AC |
| Coil Power | 13 VA |
| Body Material | Stainlees Steels |
| KV Value | 1.7 l/min |
| Tracking Number | 01OA |
| Coil Type | TP1 |
| Product Weight (kg.) | 0.42 |
