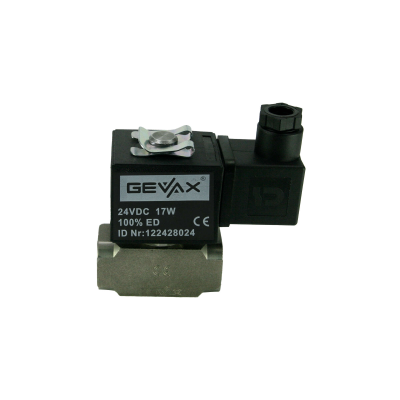

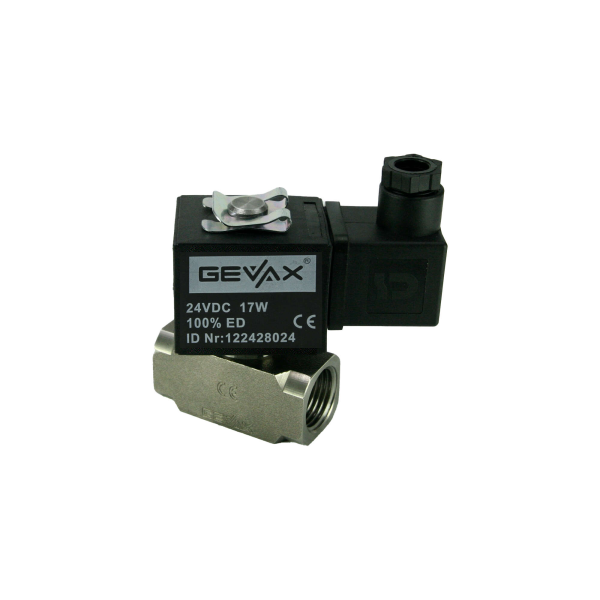

7901-KDPD005-060-G24DC | 1/2' N.C. Stainless Steel Direct Acting PTFE 0-5 Bar G24VDC 17W
1/2" Solenoid Valve N.C. Stainless Steel Direct Acting PTFE 0 - 5 Bar G24V DC 17 W
The prominent features of the stainless steel body normally closed general purpose solenoid valve you are reviewing: Corrosion-resistant stainless steel body and internal parts, large orifice, high flow rate, wide coil options. Water, Chemical, Hot Water, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Food, Agricultural, Medical, Irrigation, Cooling, Lubrication, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry, Smart home systems
Product information
- Product code 7901-KDPD005-060-G24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Stainless Steel Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | PTFE |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 5 |
| Orifice Size (mm) | 6 |
| Temperature (°C) | -10°C +160°C |
| Coil Brand | GEVAX |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Stainlees Steels |
| KV Value | 10 l/min |
| Tracking Number | 04OH |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.445 |
