8901-KBED016-120-220AC | 1/2' N.C. Manual Pilot Operated EPDM 0.5-16 Bar 220VAC 13VA
Log in to see prices here

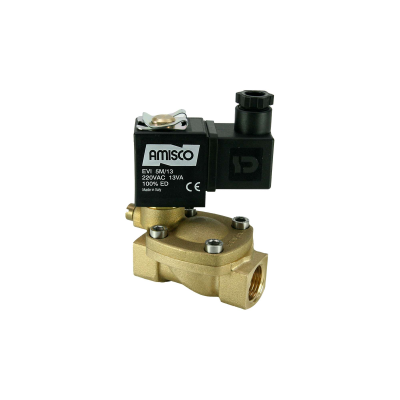

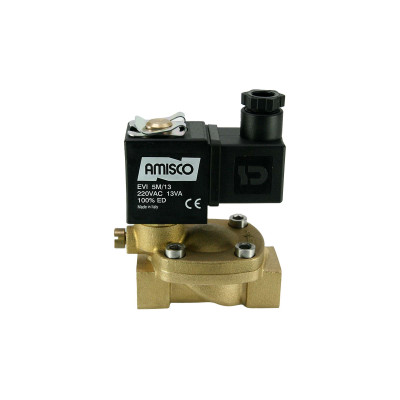

1/2" Solenoid Valve N.C. Manual Pilot Operated EPDM 0.5 - 16 Bar 220V AC 13 VA
Product information
- Product code 8901-KBED016-120-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Manually Operated Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 12 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 13 VA |
| Body Material | Brass |
| KV Value | 65 l/min |
| Tracking Number | 22AI |
| Coil Type | TP1 |
| Product Weight (kg.) | 0.61 |
