8901-KBVD016-120-24DC | 1/2' N.C. Manual Pilot Operated FKM 0.5-16 Bar 24VDC 10W
Log in to see prices here

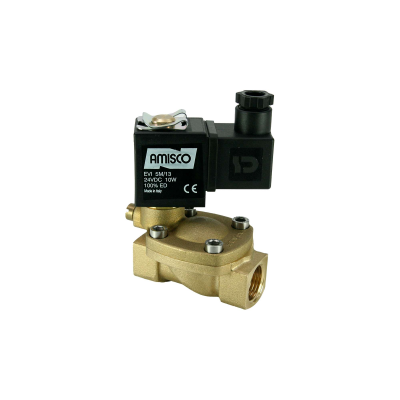

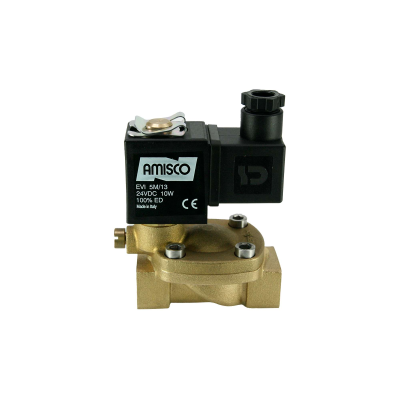

1/2" Solenoid Valve N.C. Manual Pilot Operated FKM 0.5 - 16 Bar 24V DC 10 W
Product information
- Product code 8901-KBVD016-120-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Manually Operated Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 12 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 10 W |
| Body Material | Brass |
| KV Value | 65 l/min |
| Tracking Number | 20AH |
| Coil Type | TP1 |
| Product Weight (kg.) | 0.61 |
