8901-KBVF016-250-24DC | 1' N.C. Manual Pilot Operated FKM 0.5-16 Bar 24VDC 10W
Log in to see prices here

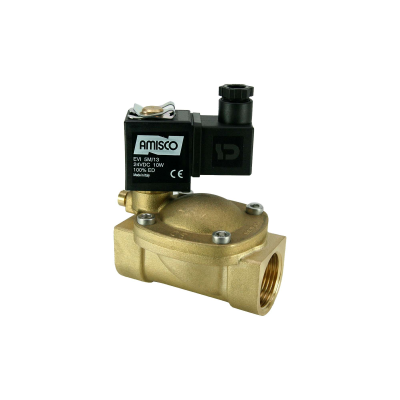

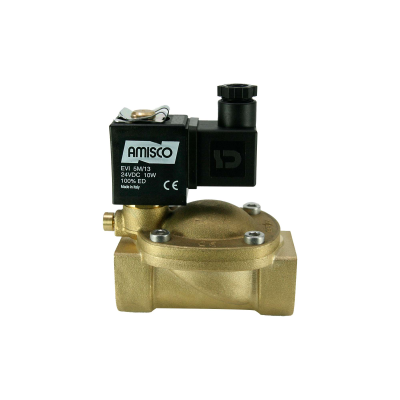

1" Solenoid Valve N.C. Manual Pilot Operated FKM 0.5 - 16 Bar 24V DC 10 W
The prominent features of the brass body normally closed manual controlled solenoid valve you are reviewing: Diaphragm Air, Water, Gas, Chemical, Hot Water, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Lubrication, Compressor, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 8901-KBVF016-250-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Manually Operated Valves |
|---|---|
| Connection Size | 1" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 25 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 10 W |
| Body Material | Brass |
| KV Value | 180 l/min |
| Tracking Number | 09AO |
| Coil Type | TP1 |
| Product Weight (kg.) | 1.03 |
