8932-KDNB007-020-220AC | 1/4' N.C. 3/2 Ways Triplet Manifold-Man. Direct Acting NBR 0-7 Bar 220VAC
Log in to see prices here

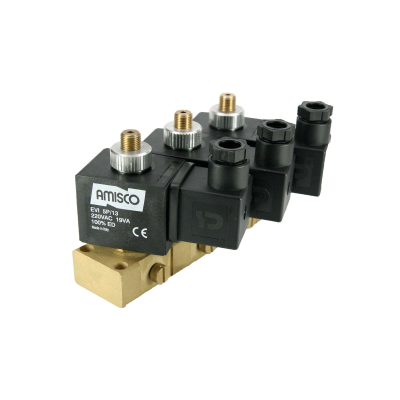

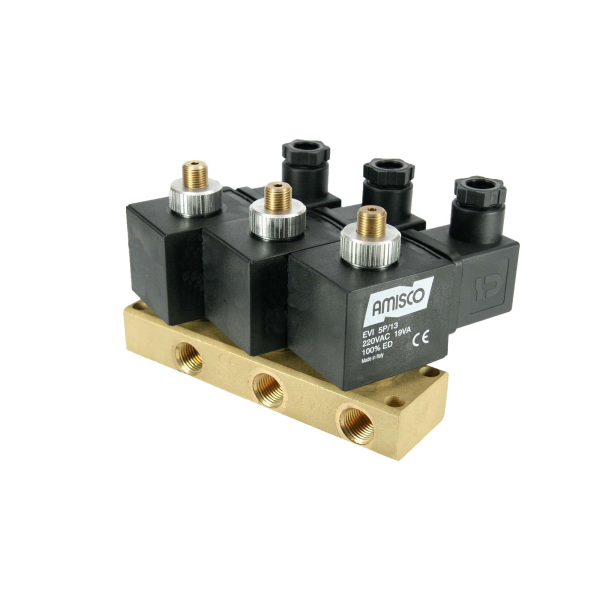

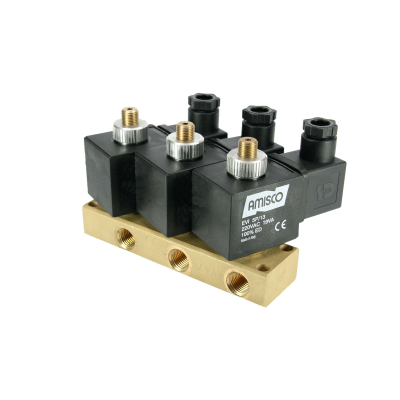

1/4" Solenoid Valve N.C. 3/2 Ways Triplet Manifold - Manual Direct Acting NBR 0 - 7 Bar 220V AC 19 VA
The prominent features of the brass body normally closed manual controlled solenoid valve you are reviewing: Manual override 3/2, 3-way manifold, 1 common inlet, 3 outlets. Air, Gas, Vacuum Recommended for use in applications such as etc. Zero Differantial Pressure, Pneumatic works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Compressor, Machining Process, Renewable Energy
Product information
- Product code 8932-KDNB007-020-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Manually Operated Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 3/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 7 |
| Orifice Size (mm) | 2 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 1.7 l/min |
| Tracking Number | 03WE |
| Coil Type | TP4 |
| Product Weight (kg.) | 1.025 |
