1401-ADVD040-060-230AC | 1/2' N.O. Servo Direct Acting FKM 0-40Bar 230VAC 19VA
Log in to see prices here

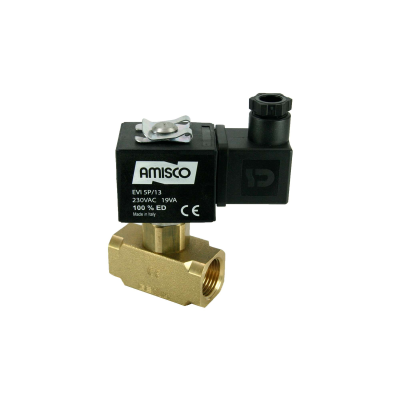

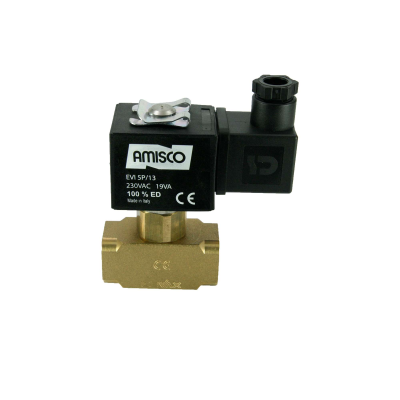

1/2" Solenoid Valve N.O. Servo Direct Acting FKM 0 - 40 Bar 230V AC 19 VA
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Large orifice, high flow rate. Air, Water, Gas, Hot Water Recommended for use in applications such as etc. Zero Differantial Pressure, High Differential Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Sawing Machines, Machining Process, Renewable Energy
Product information
- Product code 1401-ADVD040-060-230AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 40 |
| Orifice Size (mm) | 6 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 230V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 10 l/min |
| Tracking Number | 72BH |
| Coil Type | TP4 |
| Product Weight (kg.) | 0,485 |
