1941-KDNB010-030-220AC | 1/4' N.C. Regulation Direct Acting NBR 0-10 Bar 220VAC 13VA
Log in to see prices here

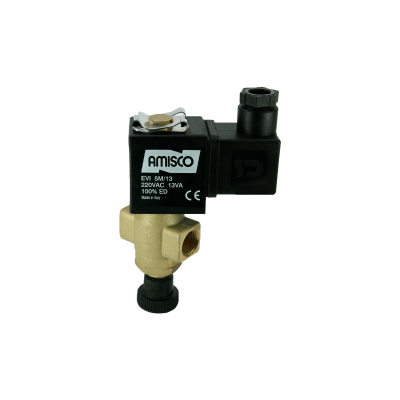

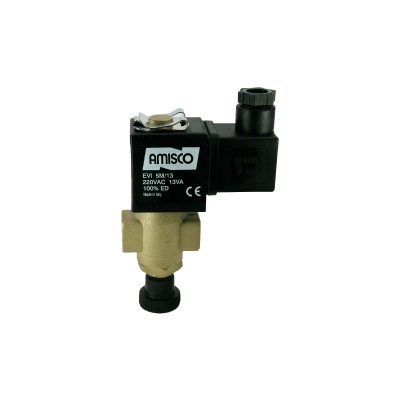

1/4" Solenoid Valve N.C. Adjustible Direct Acting NBR 0 - 10 Bar 220V AC 13 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Flow control type with plastic cap for easy flow adjustment. Air, Water, Gas, Vacuum, Chemical, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Lubrication, Compressor, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1941-KDNB010-030-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 3 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 13 VA |
| Body Material | Brass |
| KV Value | 3.5 l/min |
| Tracking Number | 02AD |
| Coil Type | TP1 |
| Product Weight (kg.) | 0.37 |
