4961-KDEB006-020-220AC | 1/4' N.C. Steam Economical Serie Direct Acting EPDM 0-6 Bar 220VAC 8.5VA
Log in to see prices here

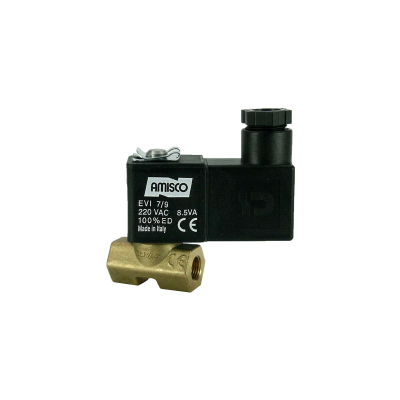

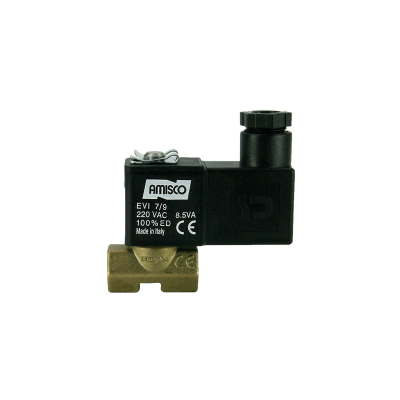

1/4" Solenoid Valve N.C. Steam Economical Serie Direct Acting EPDM 0 - 6 Bar 220V AC 8.5 VA
The prominent features of the brass body normally closed steam solenoid valve you are reviewing: Mini body, economic series, energy-efficient, compact size, low power consumption, wide application range. Hot Water, Steam Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Building Automation, Wending Machines, Washing Machines, Renewable Energy
Product information
- Product code 4961-KDEB006-020-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Steam Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 6 |
| Orifice Size (mm) | 2 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 8.5 VA |
| Body Material | Brass |
| KV Value | 1.7 l/min |
| Tracking Number | 26IC |
| Coil Type | TP6 |
| Product Weight (kg.) | 0.145 |
