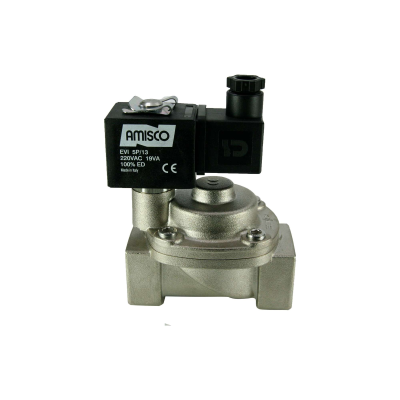

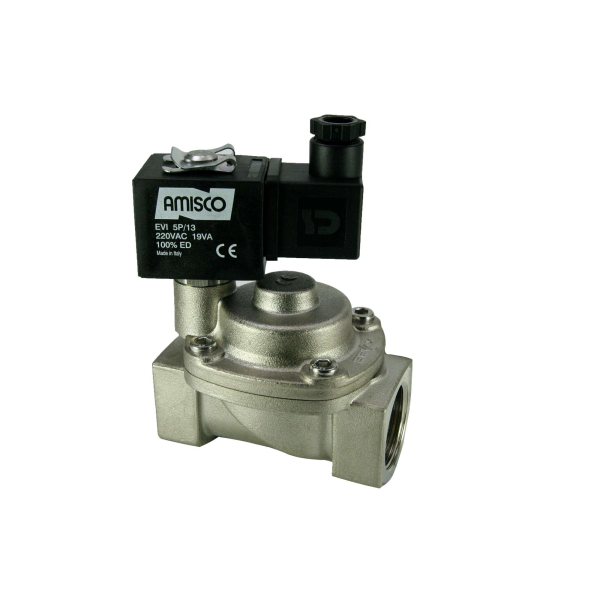

4911C-ABPF010-250-220AC | 1' N.O. Nickel Plated Piston Steam Pilot Operated PTFE 0.5-10 Bar 220VAC
Log in to see prices here
1" Solenoid Valve N.O. Nickel Plated Piston Steam Pilot Operated PTFE 0.5 - 10 Bar 220V AC 19 VA
The prominent features of the nickel plated body normally opened steam solenoid valve you are reviewing: PTFE piston and sealing element suitable for steam, corrosion-resistant nickel plating. Hot Water, Steam Recommended for use in applications such as etc. High Differential Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Washing Machines, Renewable Energy, Water Treatment
Product information
- Product code 4911C-ABPF010-250-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Steam Valves |
|---|---|
| Connection Size | 1" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | PTFE |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 25 |
| Temperature (°C) | -10°C +180°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Nickel Plated Brass |
| KV Value | 185 l/min |
| Tracking Number | 72SO |
| Coil Type | TP4 |
| Product Weight (kg.) | 1.315 |
