5801-KBNC010-100-24DC | 3/8' N.C. Ex-Proof Economical Serie Pilot Operated NBR 0.5-10 Bar 24VDC 3W
Log in to see prices here

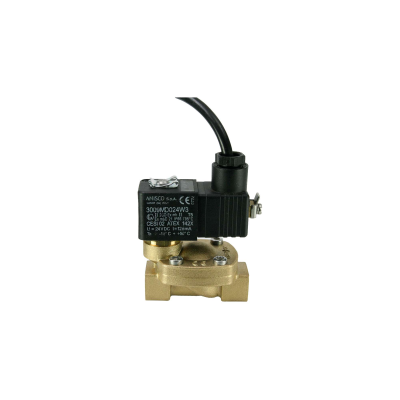

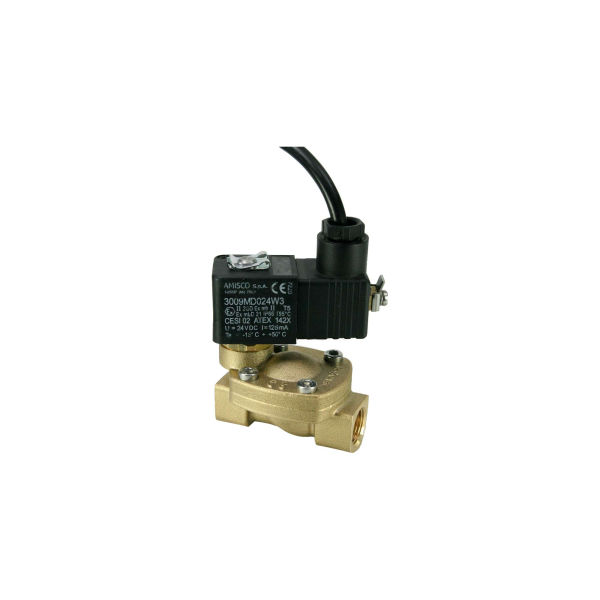

3/8" Solenoid Valve N.C. Ex-Proof Economical Serie Pilot Operated NBR 0.5 - 10 Bar 24V DC 3 W
The prominent features of the brass body normally closed ex-proof solenoid valve you are reviewing: Diaphragm type, energy-efficient, high flow rate. Air, Water, Gas, Chemical, LPG & LNG Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 5801-KBNC010-100-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Ex-Proof Valves |
|---|---|
| Connection Size | 3/8" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 10 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 3 W |
| Body Material | Brass |
| KV Value | 30 l/min |
| Tracking Number | 01EF |
| Coil Type | TP7 |
| Product Weight (kg.) | 0.56 |
